ICM 1/32 I-16 Type 10
By Paolo Totaro
![](/articles/images/3646/3646-1.jpg)
Here is a nice little kit by ICM.

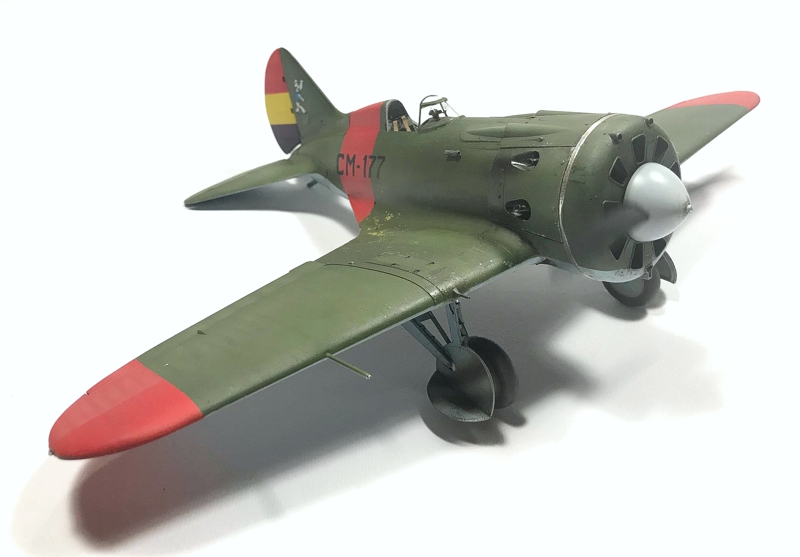

Truly, my inspiration all started some 40 years ago, when I saw a picture of a group of Soviet pilots sitting at a table in front of one of their early I-16’s somewhere in Spain during the Spanish Civil War.
![](/articles/images/3646/3646-2.jpg)
I collected references and the Azur kit for years (for decades!) but when ICM's kit appeared, I had no more excuses to procrastinate this project. The kit is accurate, yet somehow "heavy" and simple in many aspects. Therefore, I added Begemot decals, an Yahu instrument panel, Rescue resin wheels and HGW seatbelts, as well as some scratchbuilt details.
![](/articles/images/3646/3646-10.jpg)

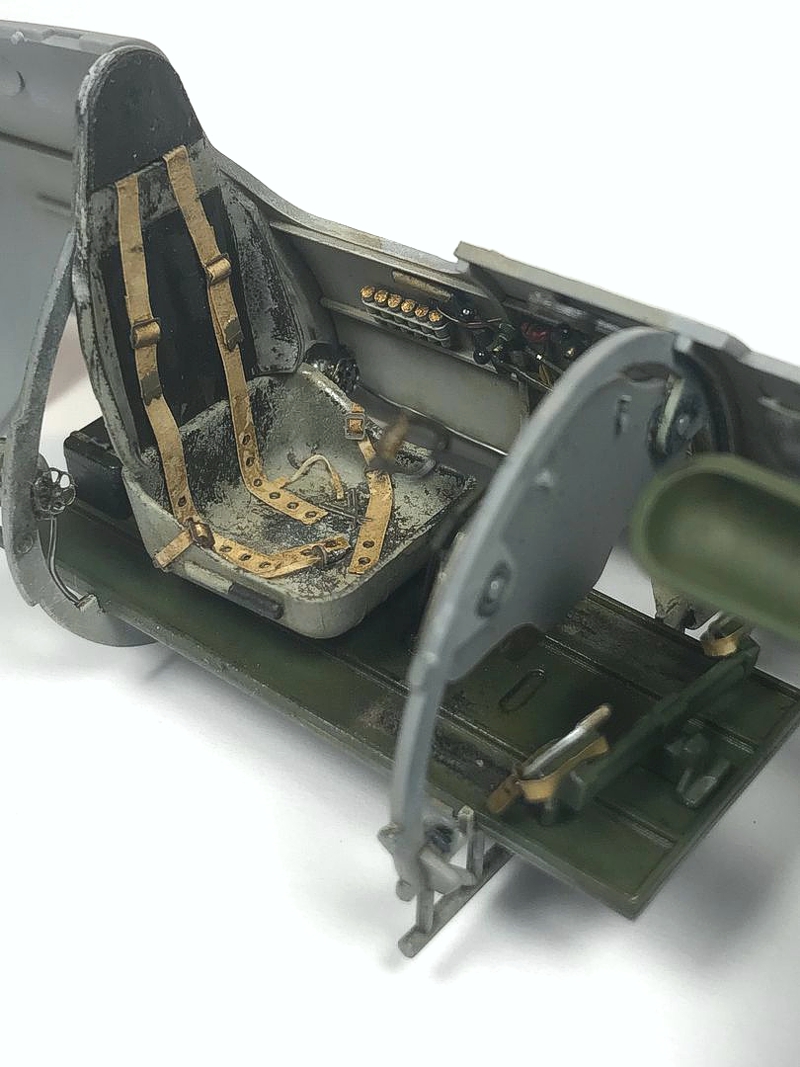

I worked a bit in the cockpit, adding flares, pistol, throttle quadrant, retracting landing gear handle and so on.
![](/articles/images/3646/3646-11.jpg)

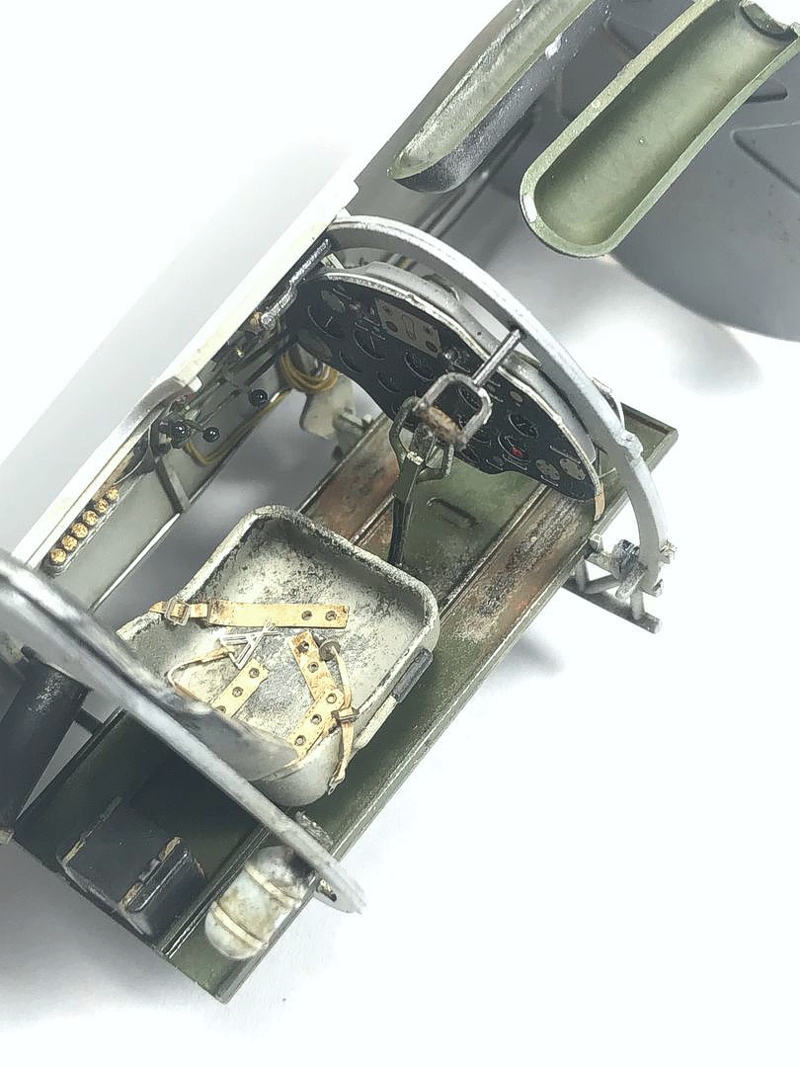

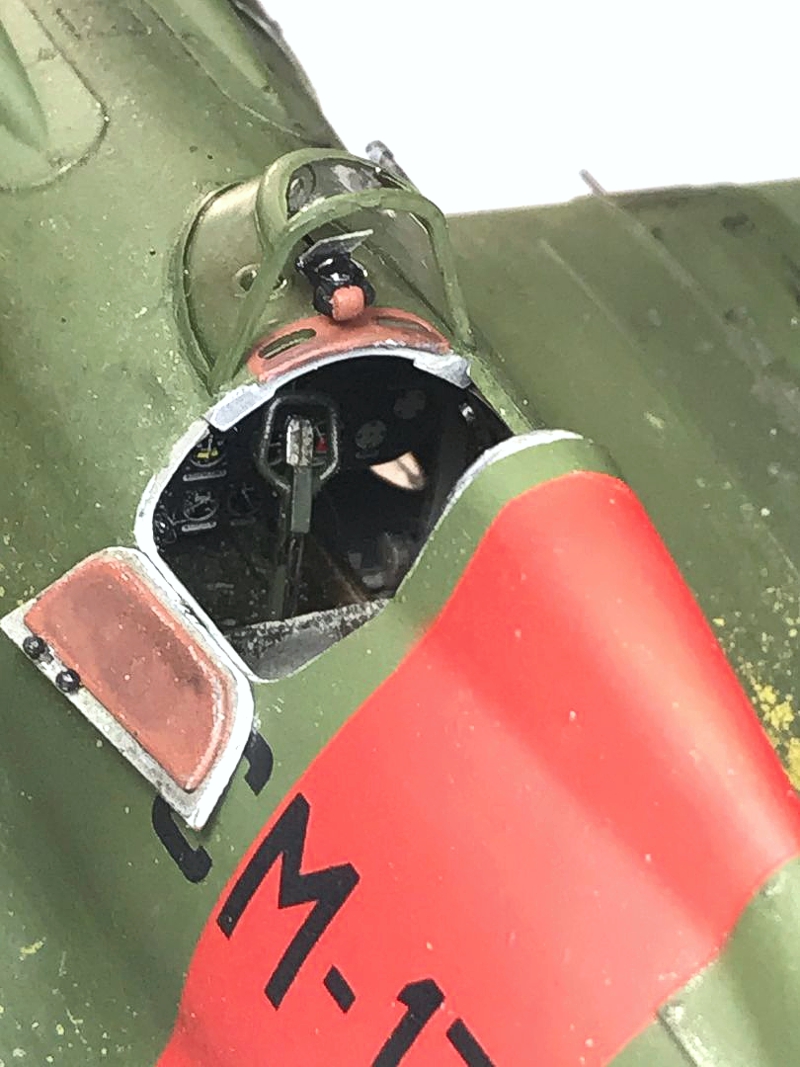

The kit's IP seems interesting, but I purchased the Yahu panel with the same order of the kit, so I used the latter. Not that you see much, in the end...
![](/articles/images/3646/3646-7.jpg)

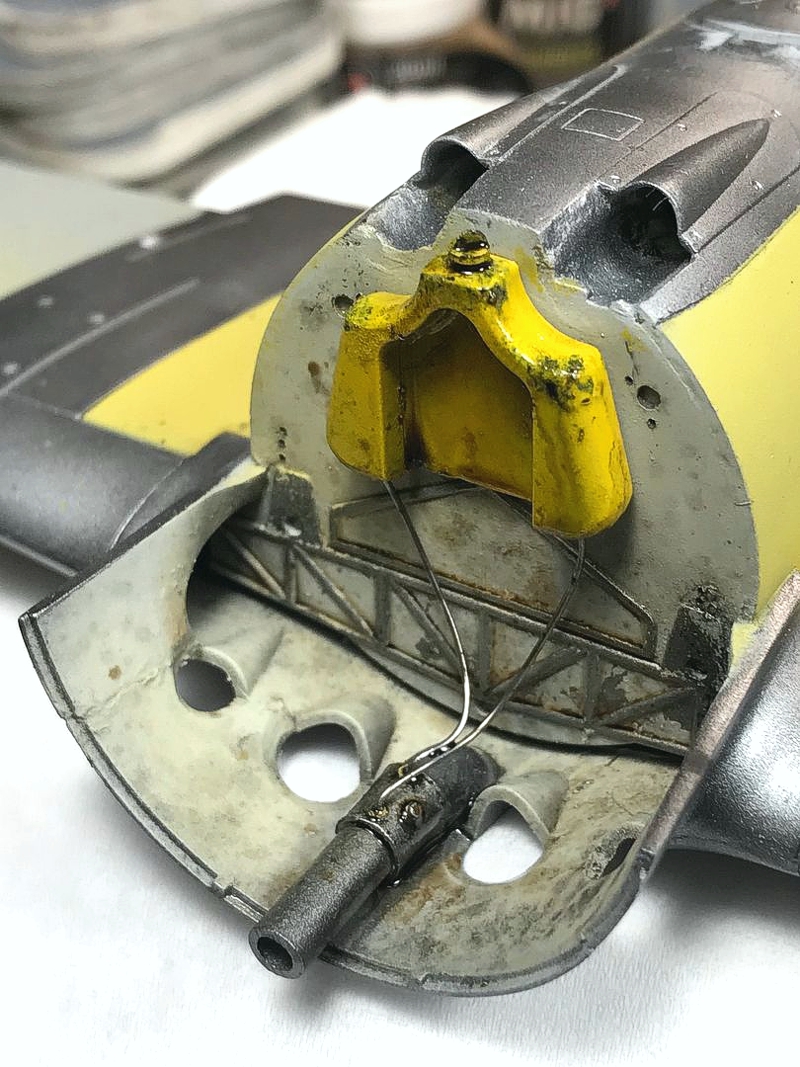

Also, in the engine compartment there are only the very basic items, so I added the oil radiator and air duct from scratch.
![](/articles/images/3646/3646-13.jpg)

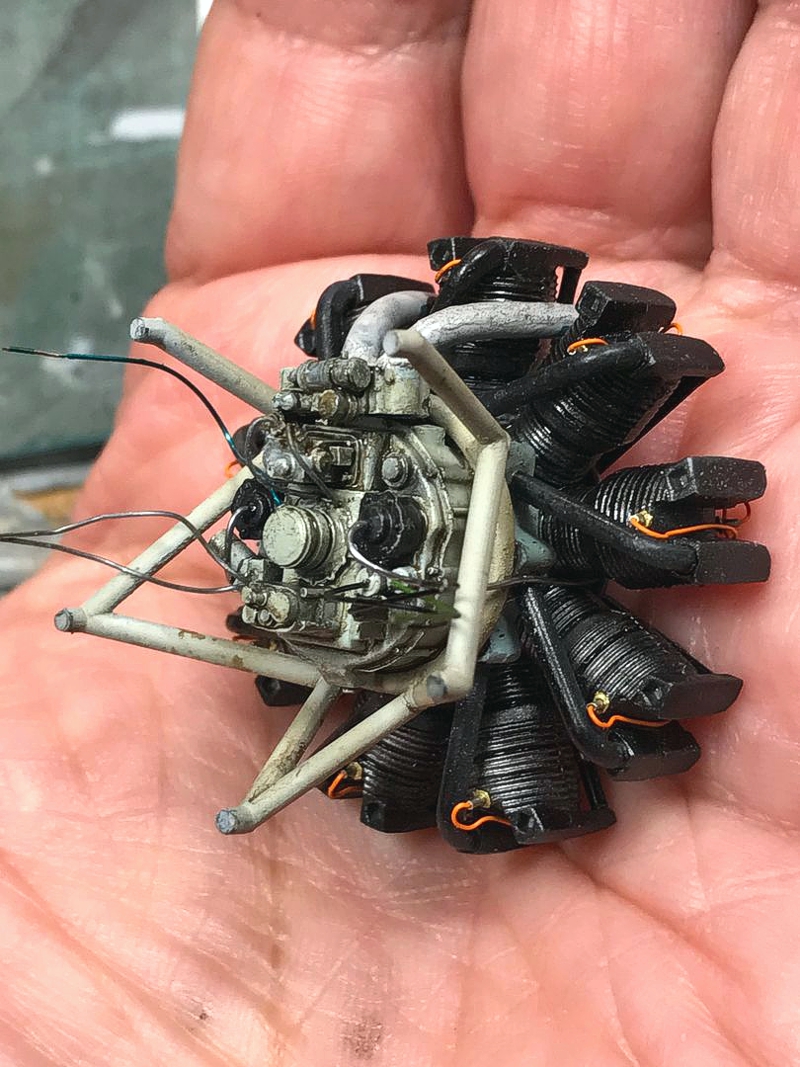

I enriched the back of the engine with magnetos, carburettor, air intakes, spark plugs and wires, most of these spares from other built kits.
![](/articles/images/3646/3646-12.jpg)

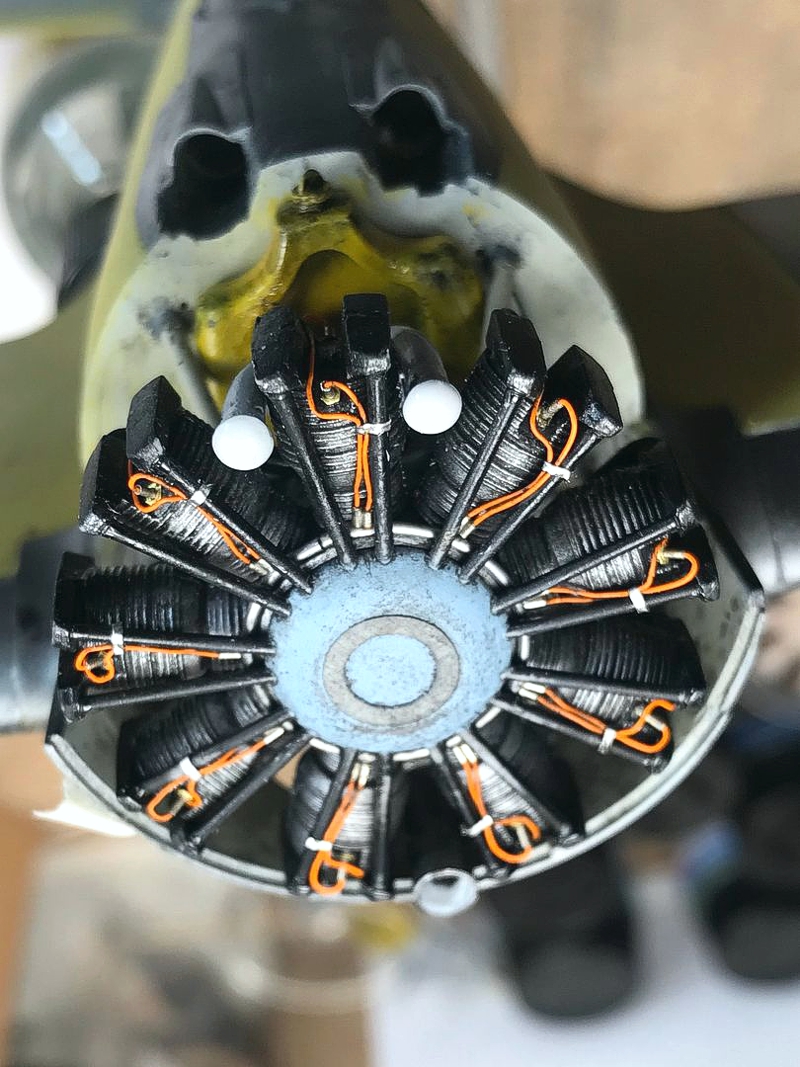

I did the same with the front end, although all will be buried under the tight cowling.
![](/articles/images/3646/3646-14.jpg)
With slight modifications to the kit's cowling, I rendered the internal rotating plate fully functioning, leaving the chance to see something of the engine.
![](/articles/images/3646/3646-6.jpg)

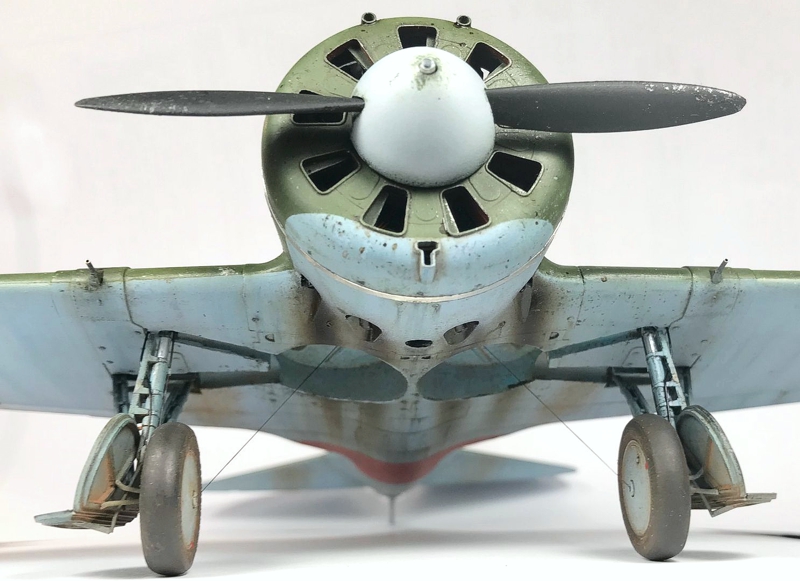

Also, I allow access to the engine compartment by installing some micro magnetos on the upper and side panels, so these snap on when they near the fuselage.
![](/articles/images/3646/3646-8.jpg)
![](/articles/images/3646/3646-9.jpg)

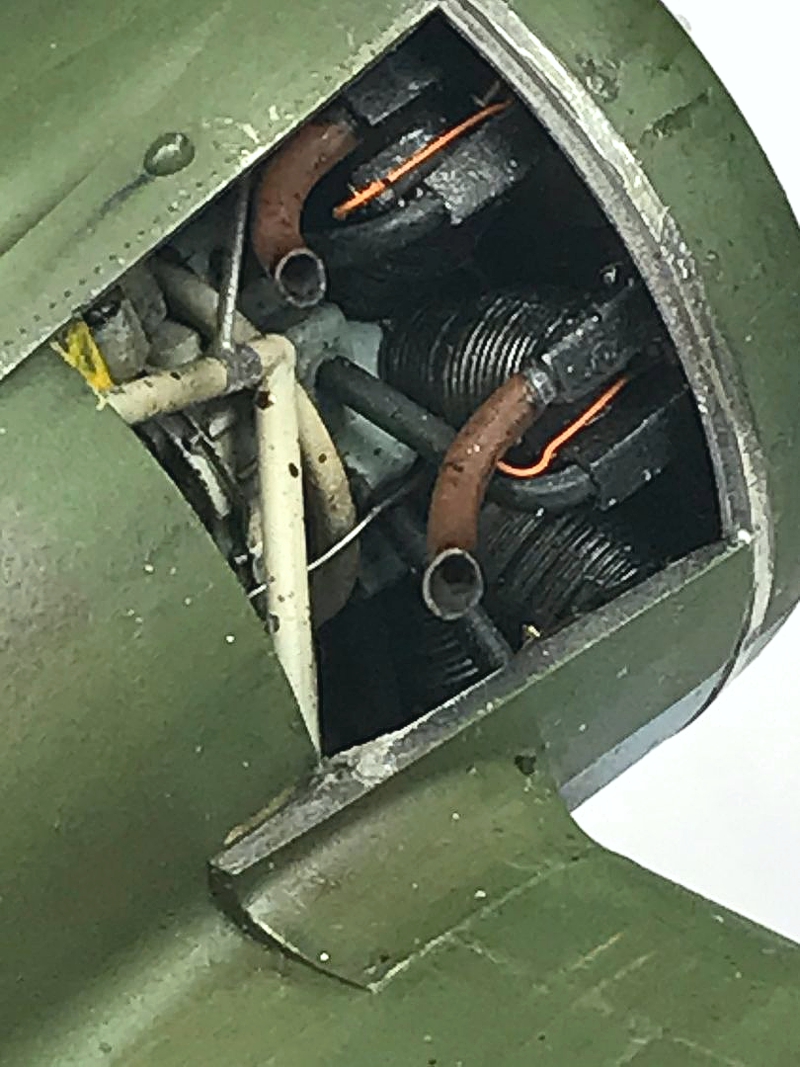

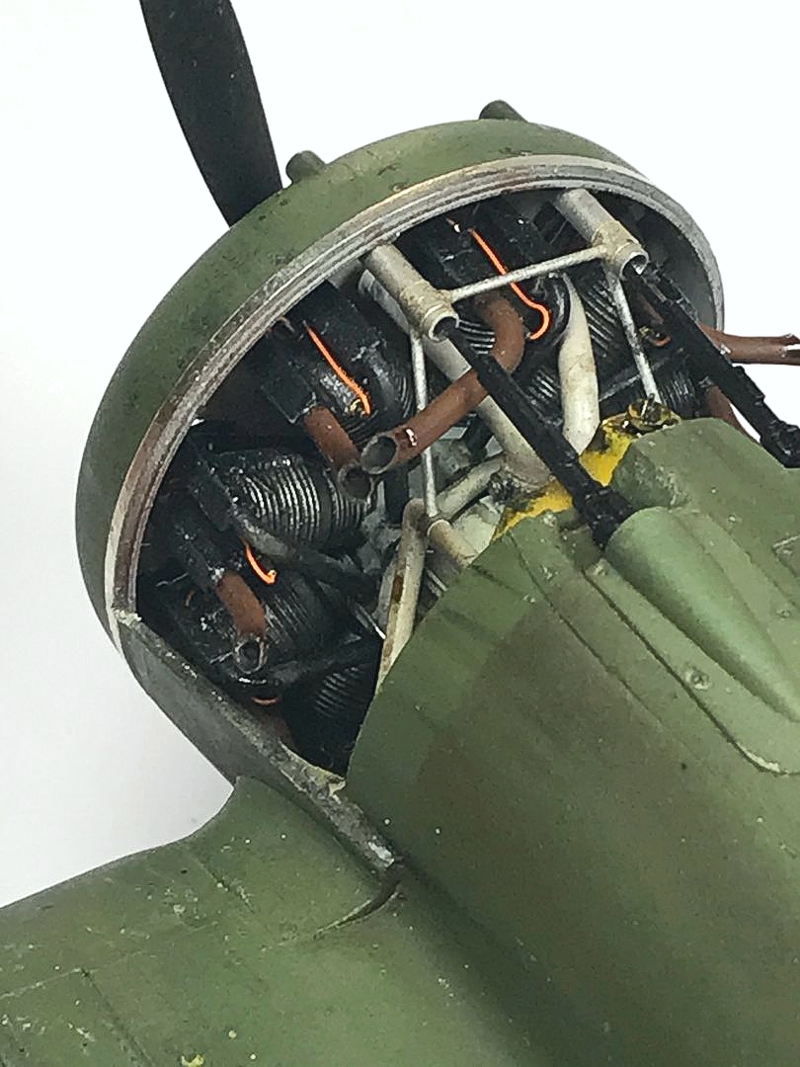

I found little references about the Shvetsov M-25 engine but assumed as it was a license-built Wright R-1820, I simply used those references, making things a little simpler. Some gyzmology was necessary, anyway.
![](/articles/images/3646/3646-15.jpg)

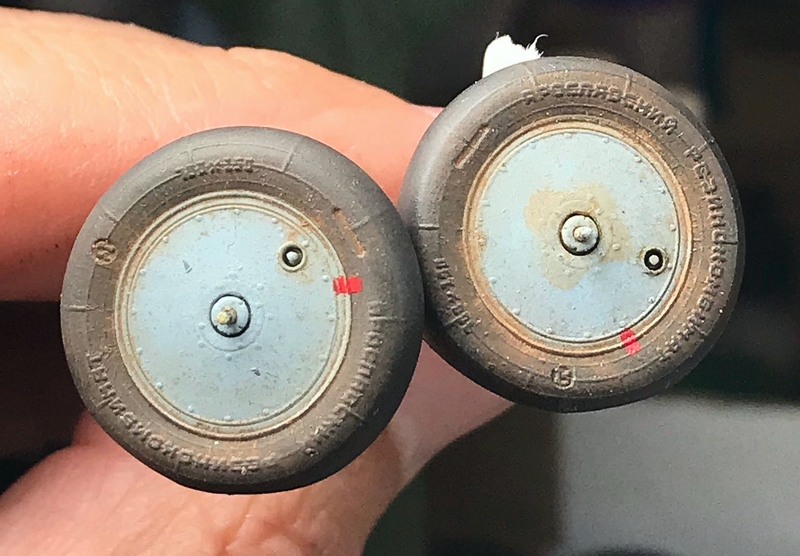

I was delighted by the Rescue wheels, a really nice product!
![](/articles/images/3646/3646-4.jpg)

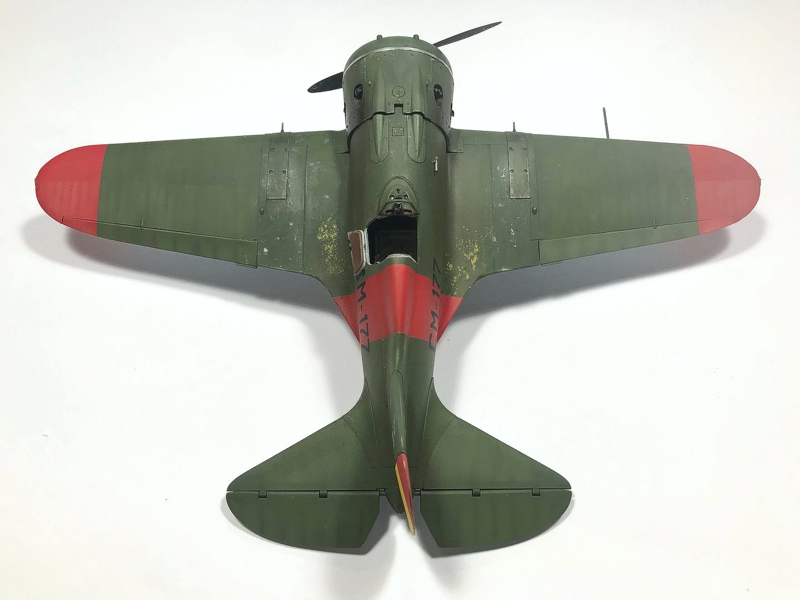

I kept to a minimum the scratches on the Karman, since the real aircraft was made mostly of wooden panels.
![](/articles/images/3646/3646-3.jpg)

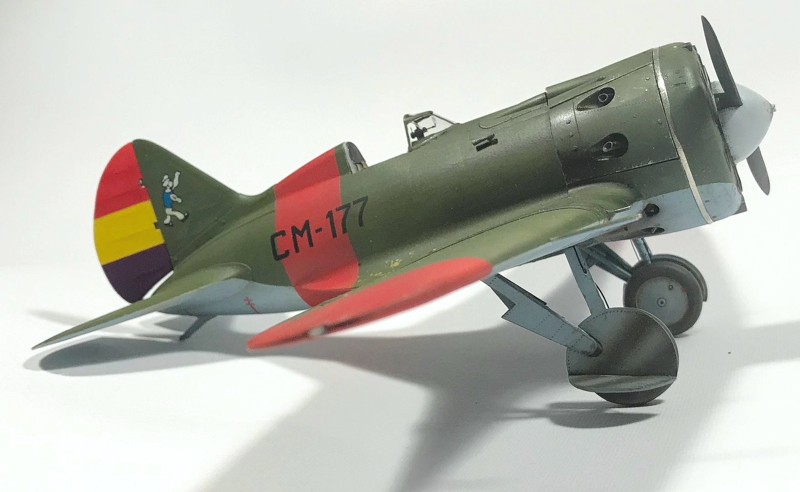

The Begemot decals were printed on a rather thick film, but after some working with dedicated liquid products and some Pledge, these made their mark on the fuselage.
![](/articles/images/3646/3646-5.jpg)

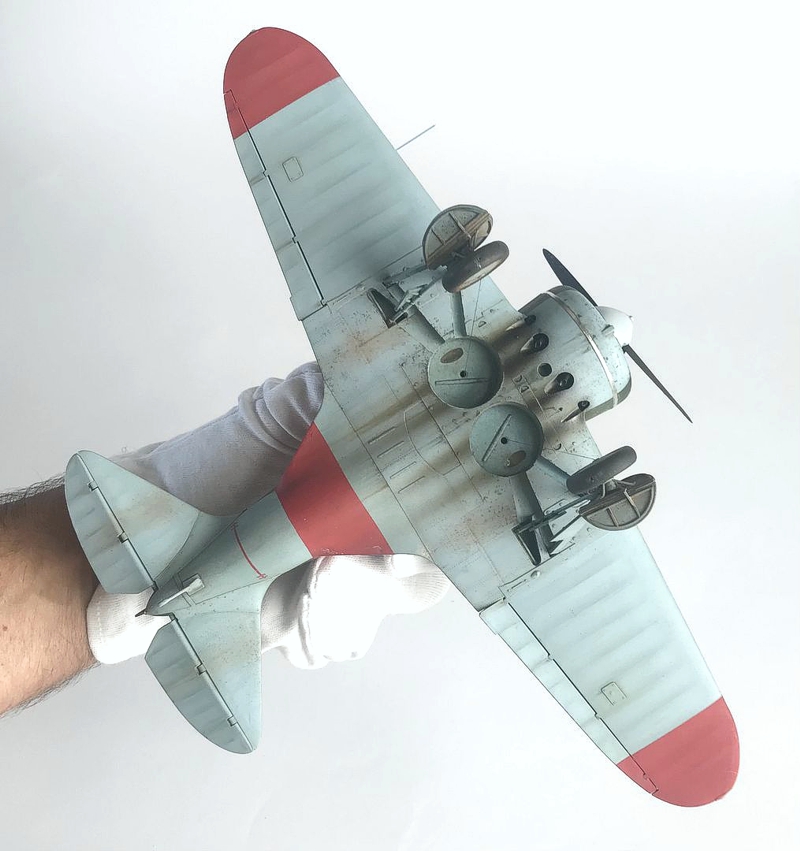

I painted the exhaust fumes as per photos and decided to leave the flaps up due no images of these being down were found by me.
All in all, a really enjoyable building experience; I had a lot of fun with it.
