The F/RF-4E in the Hellenic Air Force Service - Part 1

By Dr Menelaos Skourtopoulos

Introduction

The Hellenic Air orce received between 1974 and 1978 58 new F-4Es and 8 new RF-4Es. In 1991 30 more used F-4Es came from the Air National Guard, and finally 1994 27 ex Luftwaffe RF-4Es were came to support the reconnaissance needs of the Nation. Four Sqs. was equipped with the F/RF-4Es:

The 337 MPK (All weather Sq.) "Fantasma" (Phantom) based today in Larissa AB (110 Combat Wing), the 338 MDB (Fighter Bomber Sq.) "Aris" (Mars) and the 339 MPK (All weather Sq.) "Aias" (Ajax) based in Andravida AB (117 Combat Wing) and the 348 MTA (Tactical Rec. Sq.) "Matia" (Eyes) based also in Larissa AB (110 Combat Wing).

In 1997 the Hellenic Aerospace Industries started together with DASA an update Program for the modernization of 39 F-4Es (all from the new F-4E batches) to make them flyable until 2010. This project called Peace Icarus 2000 (I and II) and included a new radar (AN/APQ-65), new colored multi function cockpit screens, AMRAAM and AIM-9M capability, AFDS, friend/foe identification, and many more changes that based at the F-4F ICE program. The program will make the Peace Icarus Phantom a very dangerous adversary even for the newer and more advanced "electric" jets of today.

The painting schemes found on Hellenic Phantoms varied from the standard US SEA scheme to the new Ghost scheme.

But let us take things together...

The Model Situation

I'll don't start listing all the F-4 kits in all scales. I'll write only about the big Phantoms in 1:32 scale. Well there are two companies with 1:32 F-4s in the market. Revell/Monogram and Tamiya. Almost all versions of the mighty Phantom are available (the F-4E/F and RF-4C/E from Revell and the F-4C/D/J from Tamiya) except the F/RF-4B and the British F-4K/M. Both Revell and Tamiya Kits had their problems but all in all these are both very good kits and you can build masterpieces out of them.

For the F-4E I used the Revell kits and exactly the F-4F because the F-4E is hard to find in Europe (and specially in Germany!). On the other hand the F-4F kit offers very good seats but not so good instrument panels as the F-4E kit and has not the slatted stabilators. So I had to order them from the States because it is just very difficult to make them from scratch (many thanks to Revell/Monogram guys!). One more problem is the wrong nose of the F-4E/F kit but I can live with it. Otherwise the kit is very good and offers almost everything to make a superb model out of it. I used five kits to cover all aircraft types and all of the painting schemes that used by Hellenic Phantoms. Four F-4Fs (converted into F-4Es) and a RF-4C (converted into a RF-4E).

Let us begin with... Part I

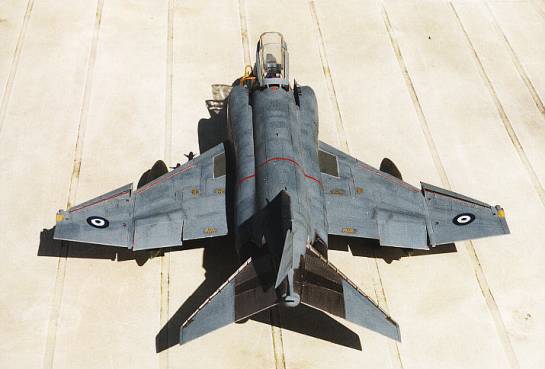

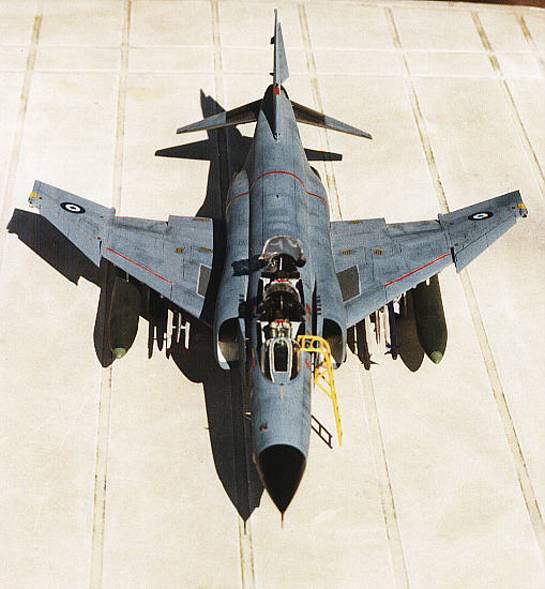

I'll start from the middle! Greek Phantoms was flown back in the 70es in the SEA style scheme and had big light blue and white roundels in six positions. In the mid 80es the paint scheme that was already used by the Mirage F1 and the F-5A was also used by the F-4s. It was the Aegean Blue (FS 35164) in all upper surfaces and silver (FS 17178) on the under surfaces. The Aegean blue scheme was used until the recent days and it is been replaced now with the new ghost scheme seen on the F-16s and F-5s.

There was a big misunderstanding about the right tone of the Aegean blue. Is it darker or lighter? Well, Greek F-4s are used many times a day and together with the Greek climatic conditions makes the amount of weathering very high. The right tone of the Aegean blue must be a much lighter one... but the right answer is very simple: If it looks right it is right!

Cockpits

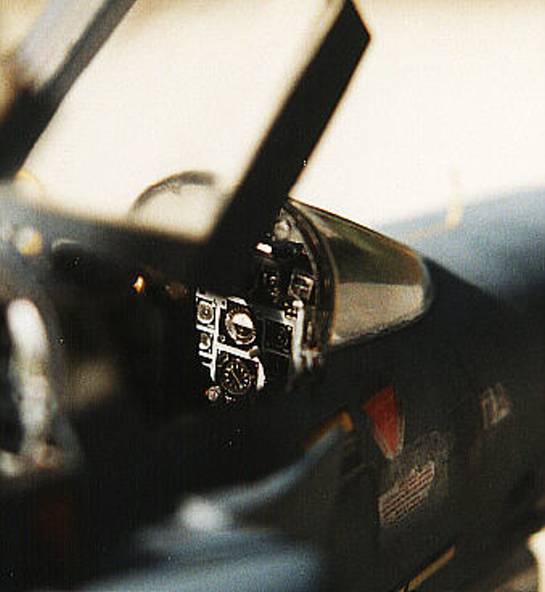

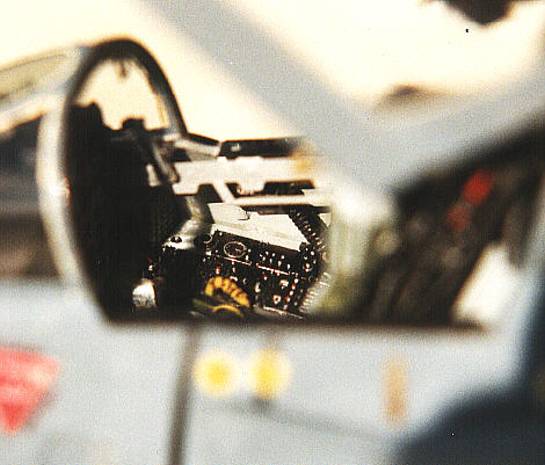

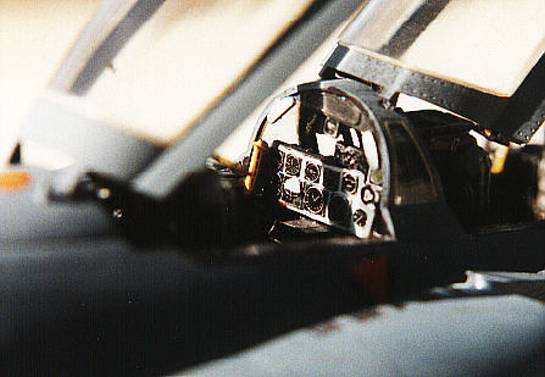

As I wrote above, the instrument panels are 3D, but not so good as in the F-4E kit(especially the front panel). I used the Eduard photoetched kits to make things better. The WSO panel was took from the kit but I added some cables in the back and the shade of the radar screen.

The back cockpit is too deep, so I had to cut it and glue it 0.5cm higher. If you don't change it, you'll have to put the seat much higher. Otherwise the situation in the cockpit is OK.

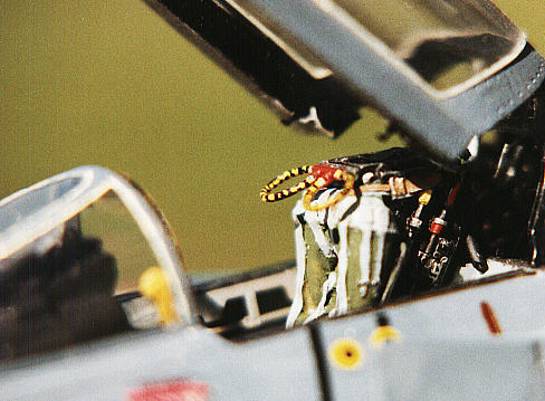

The seats that I found in the F-4F kit are very good, but I changed them with resin ones from Paragon. I used only the face curtains handles from the kit.

Undersides

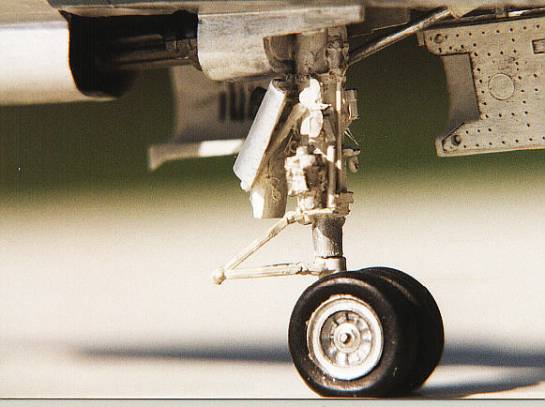

One more problem came through. The front landing gear is out of scale! (too thin). I had to make the whole thing from scratch (I used photos from the real thing and the same part from the Tamiya kit as a template). The main undercarriage is otherwise well done from Revell.

I wanted the access panel of the Vulcan cannon open so I put one breach of a Vulcan cannon left over from one of my many F-104 kits!

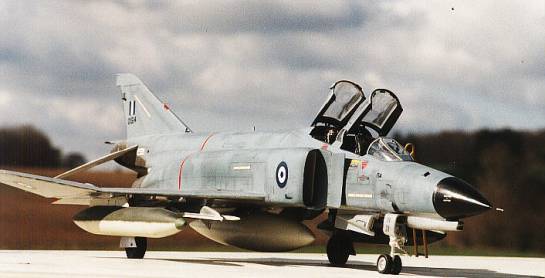

I used the original centerline tank (you have also the option for the F-15 style tank!) and the wing tanks from the Tamiya kit.

Painting & Decals

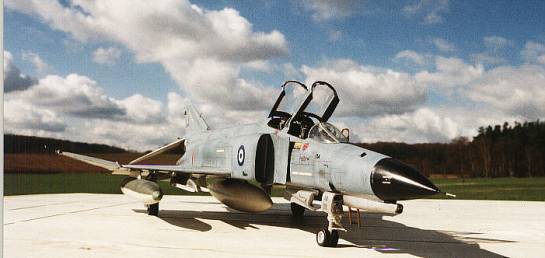

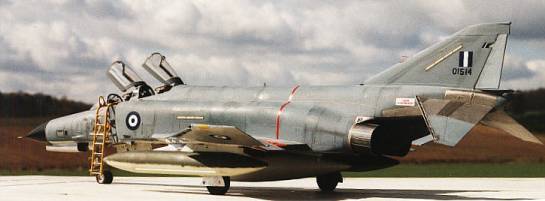

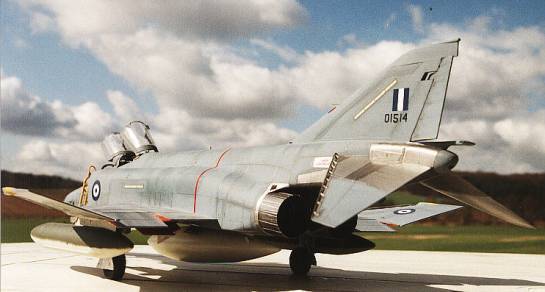

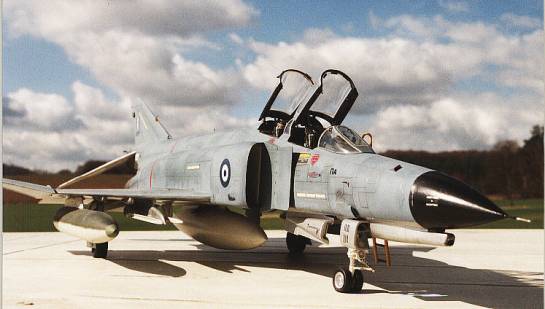

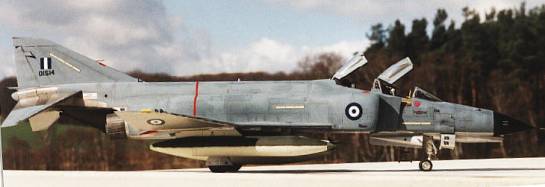

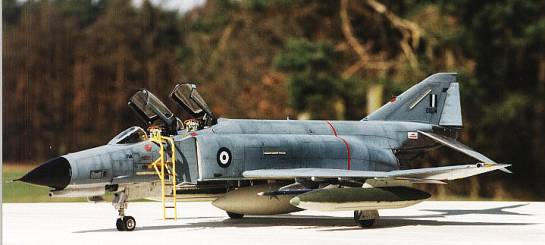

As I wrote above the Hellenic Phantoms were flown between mid '80s and '90s with the Aegean Blue scheme. This blue variation is some kind of tricky because everyone wants this color in more than one tone. Well the truth is that the FS 35164 is much lighter on the F-4 and together with the Greek sun, wind, and salt water you have to change this basic color to a gray-blue one!<

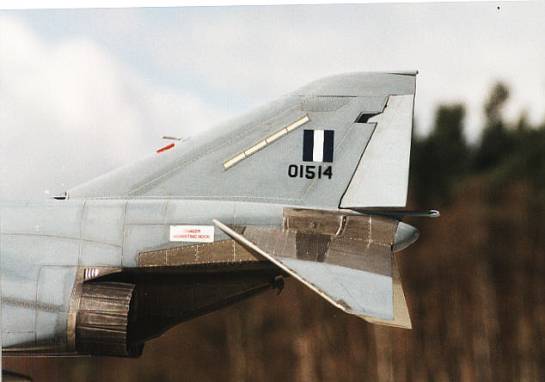

One particular point of interest is that once the aircraft goes through repair and other service procedures, ground personal sprayed the panel lines with fresh (and darker) color. You have the effect that after some service time almost every panel line is darker than the rest. I used enamels for painting and I didn't used a spray gun to paint the model. Everything was done by brush.

Some of the decals was made from the beginning by drawing and printing them on clear decal sheet. The Greek roundels are made in Greece from a company named Plastimodelismo.

References

F-4 Phantom (Kostas Dimitropoulos) (Costandinidis Publications)
Machitika Aeroskafi Polemikis Aeroporias (Combat Aircraft of the (Hellenic) Air Force) (in Greek) from the Model magazine "Modelling"
F-4 Phantom II in detail and scale (Part 2, 1, 3) (Bert Kinzey)
Modern Military Aircraft (Bill Gunston)
F-4 Phantom (Modern Combat Aircraft 1) (Bill Gunston)
