1/15 Bell H-13D MASH

By Ken Foran

The Build

Part One

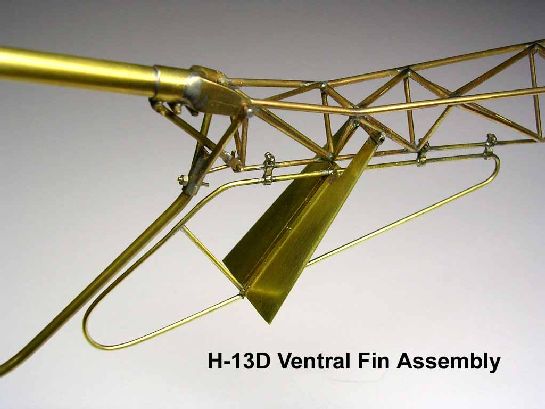

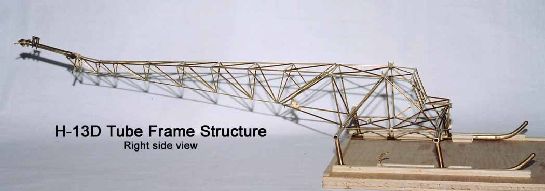

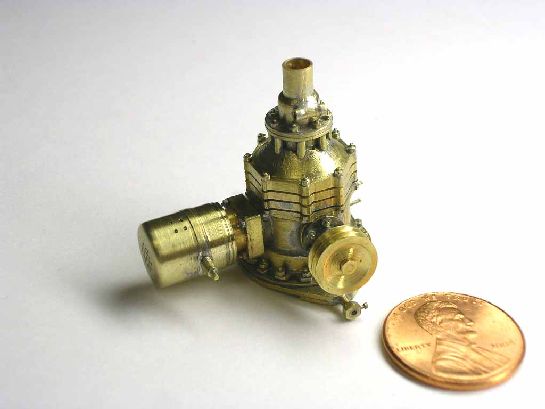

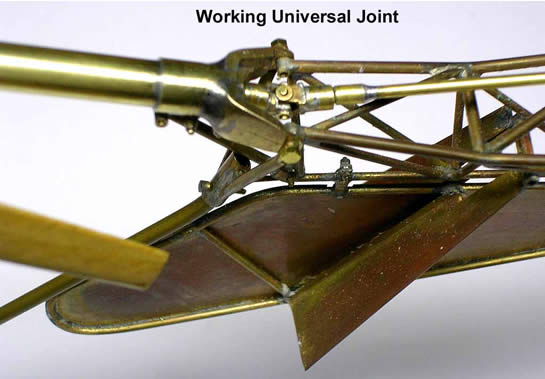

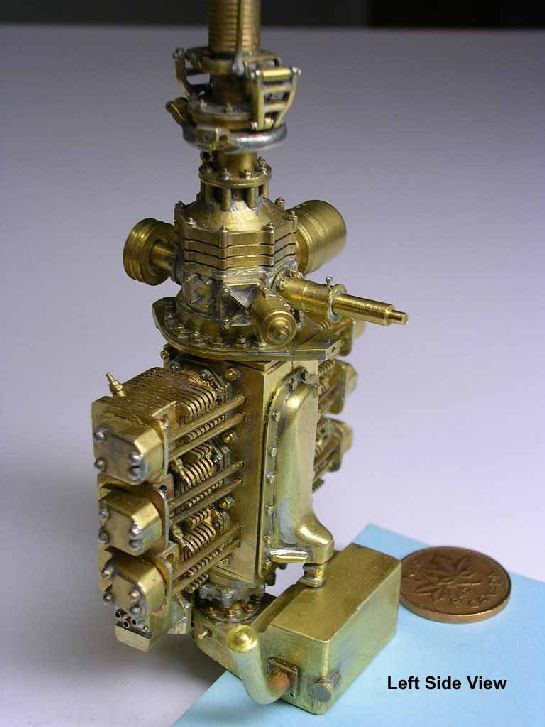

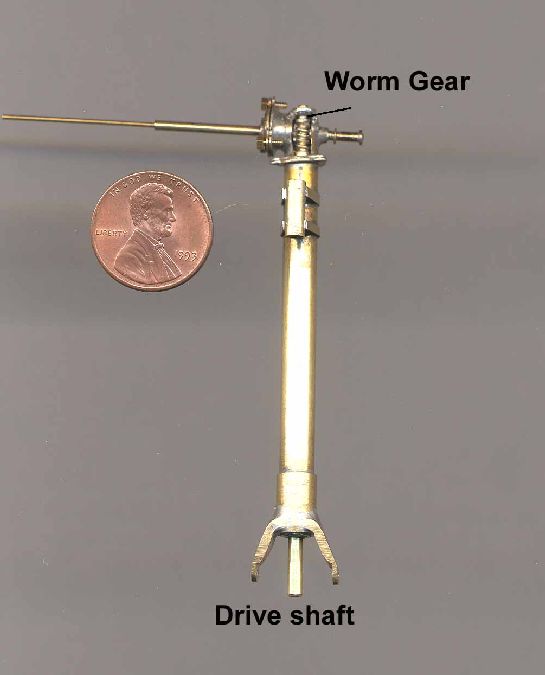

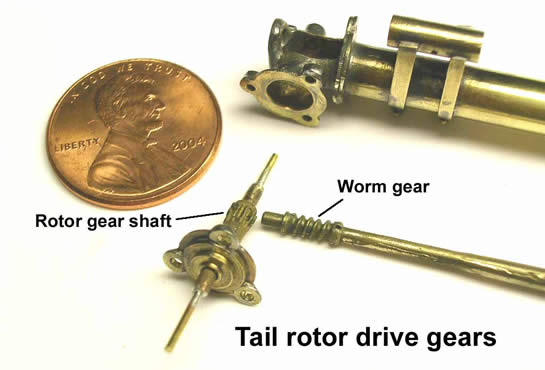

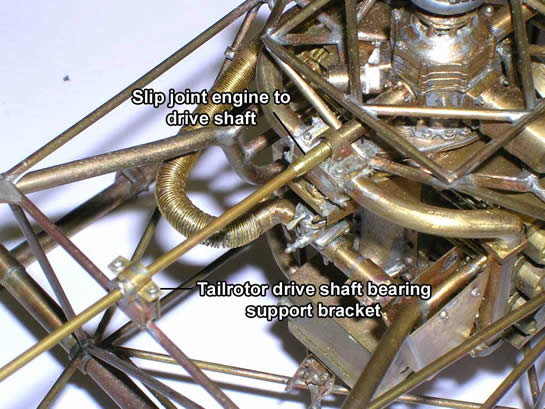

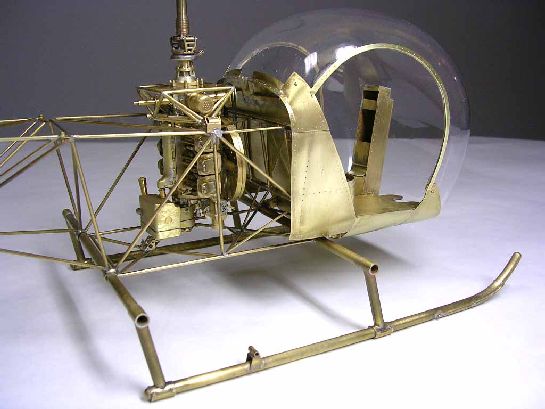

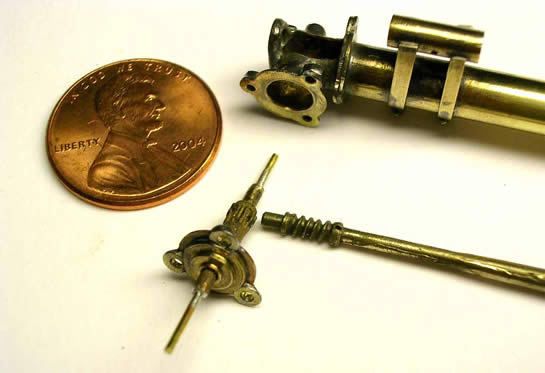

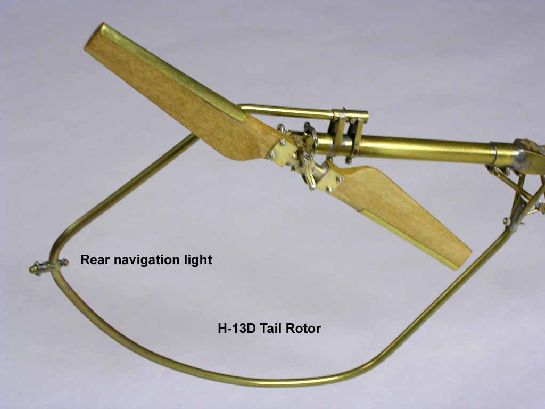

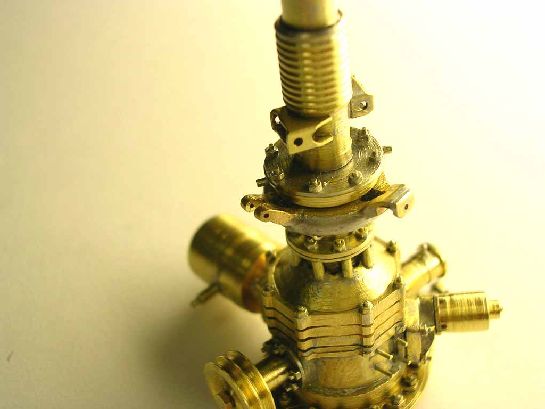

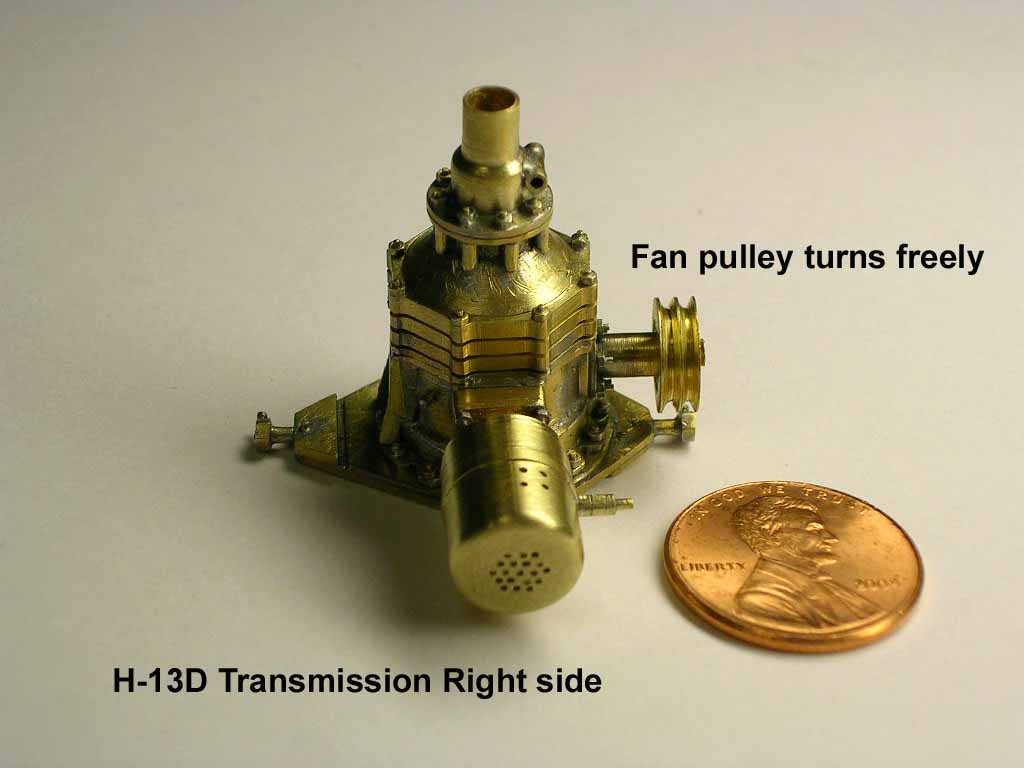

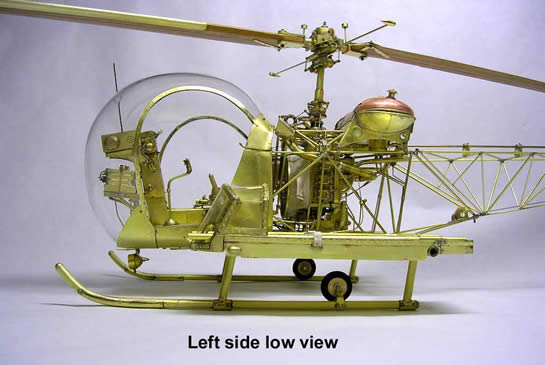

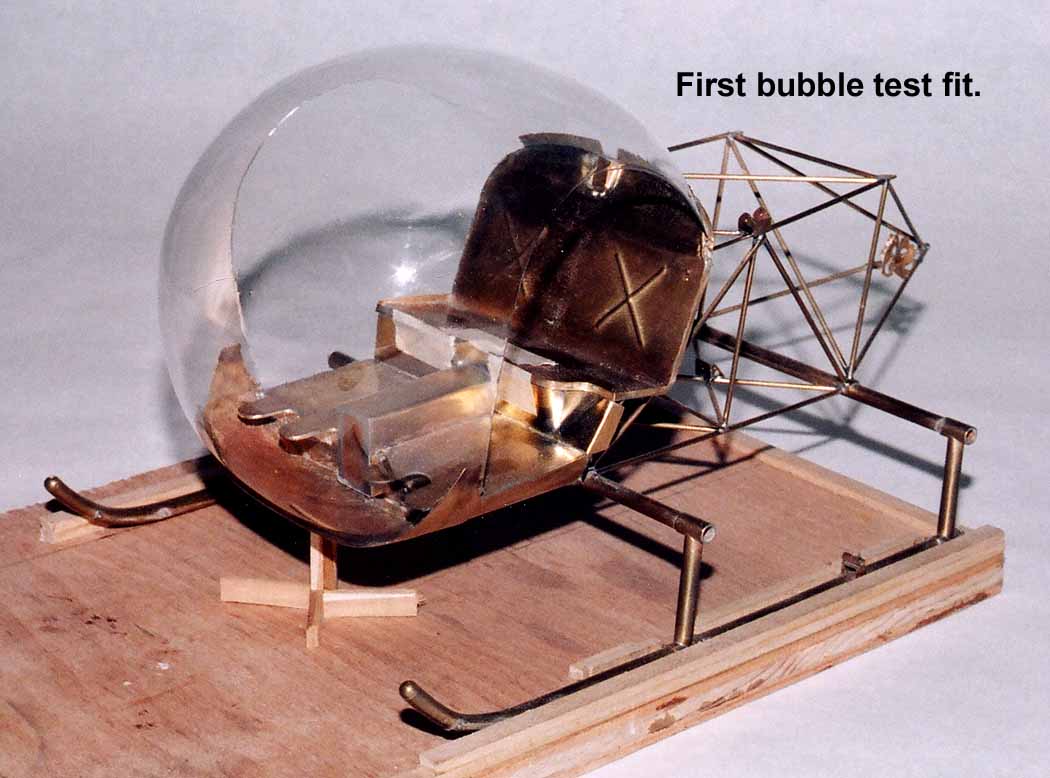

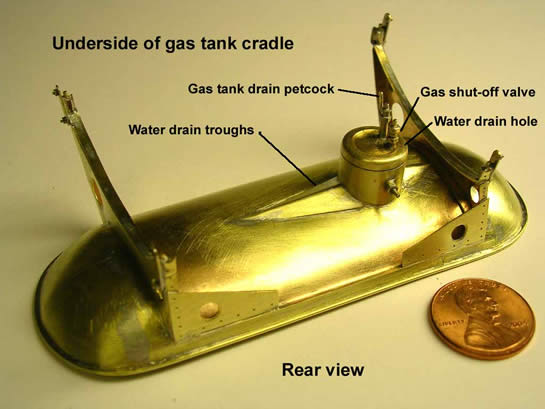

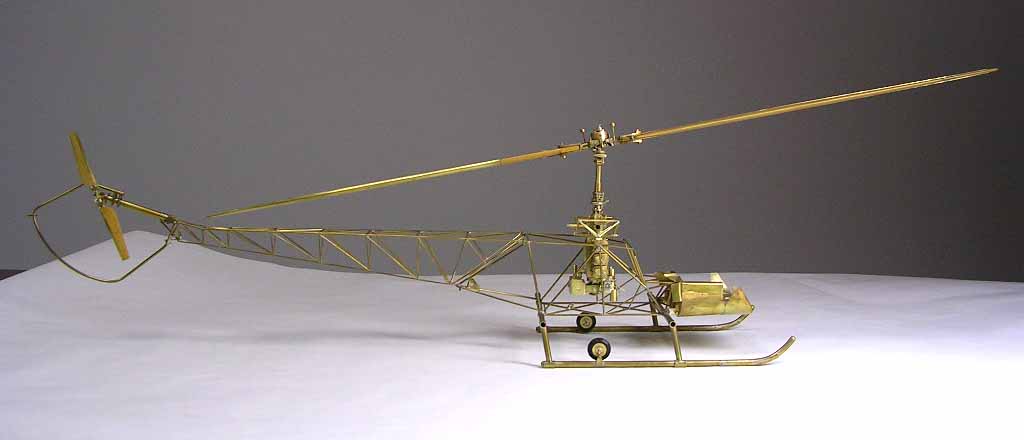

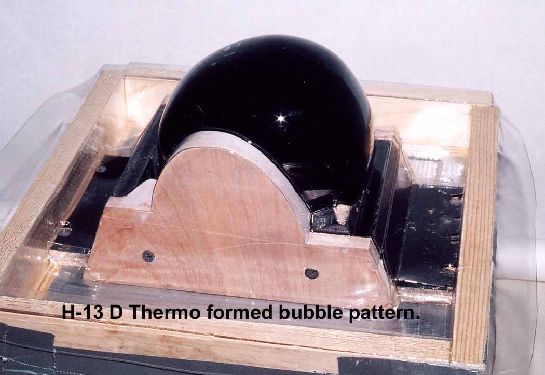

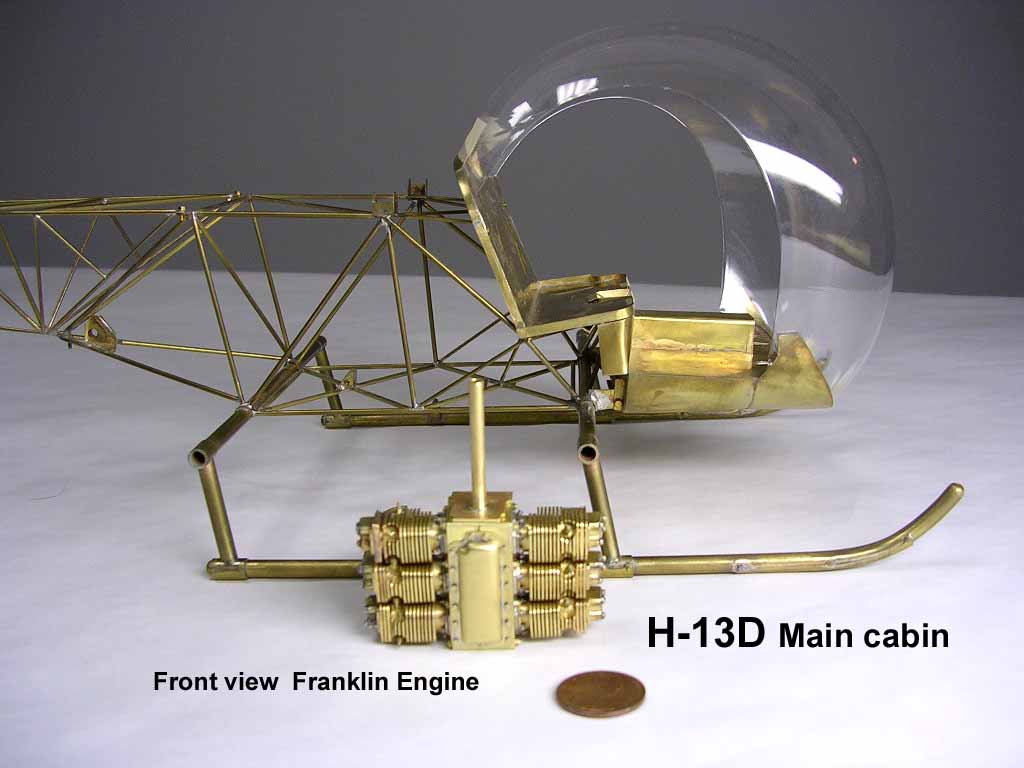

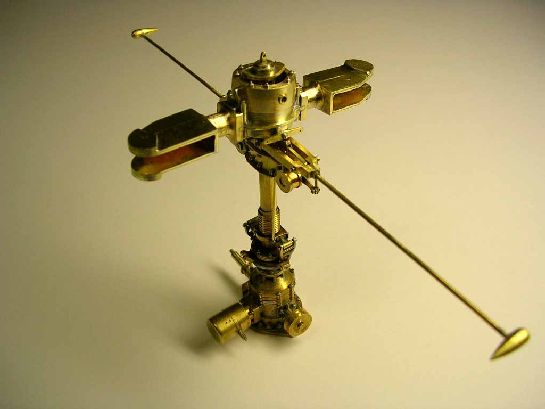

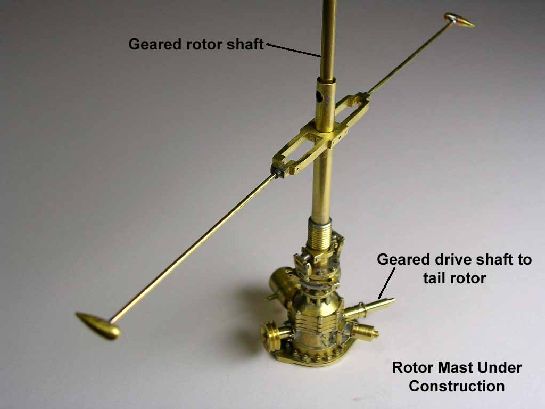

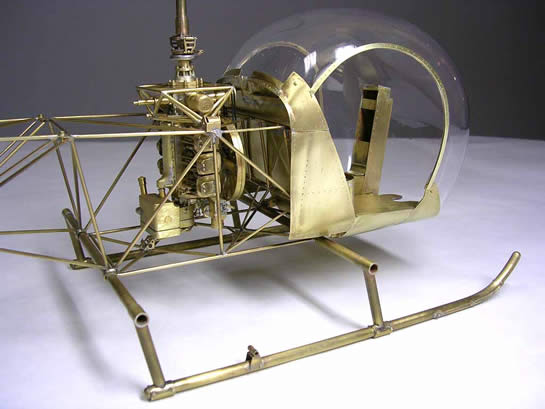

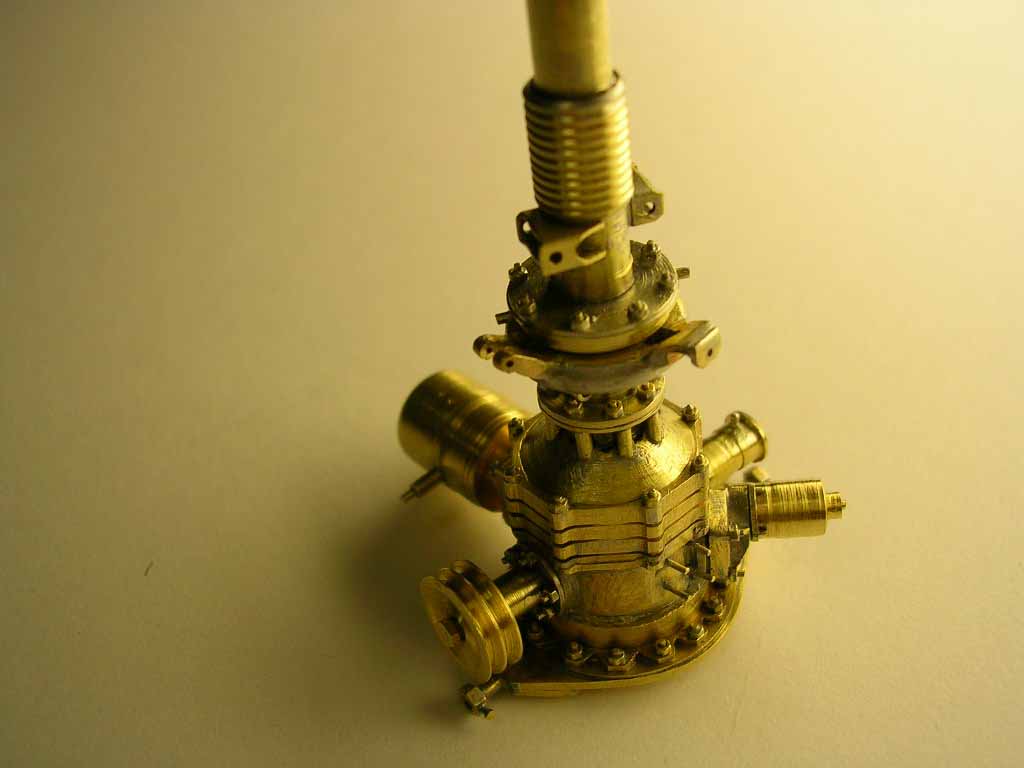

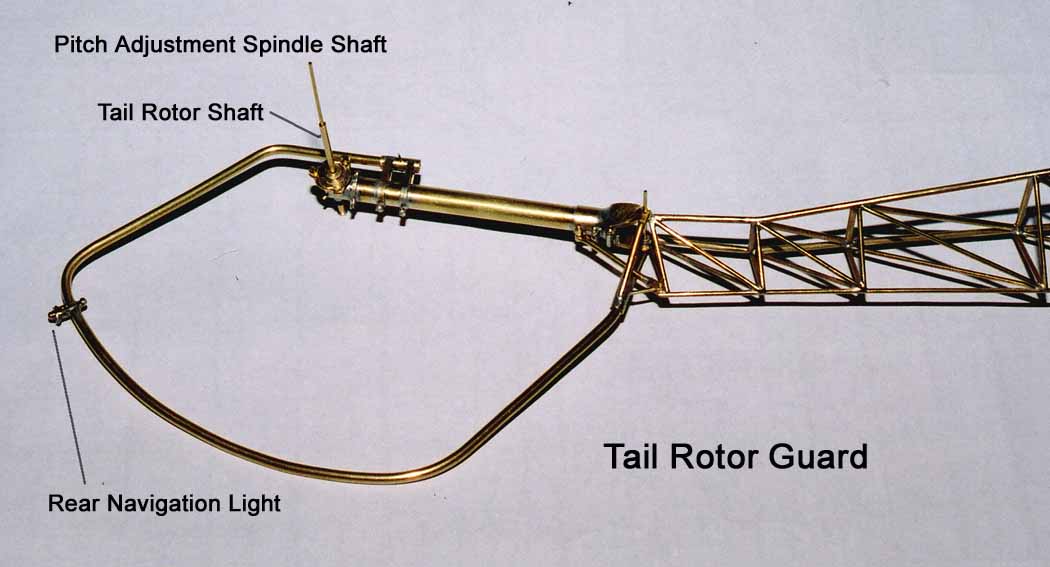

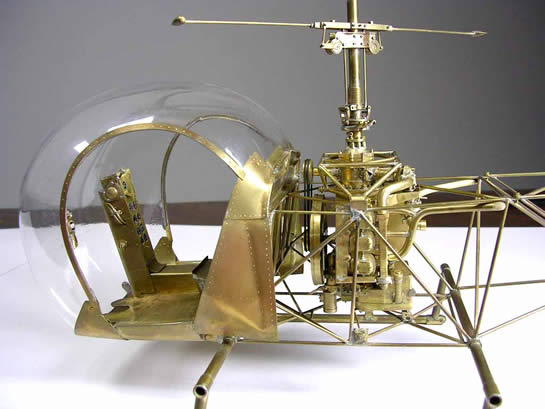

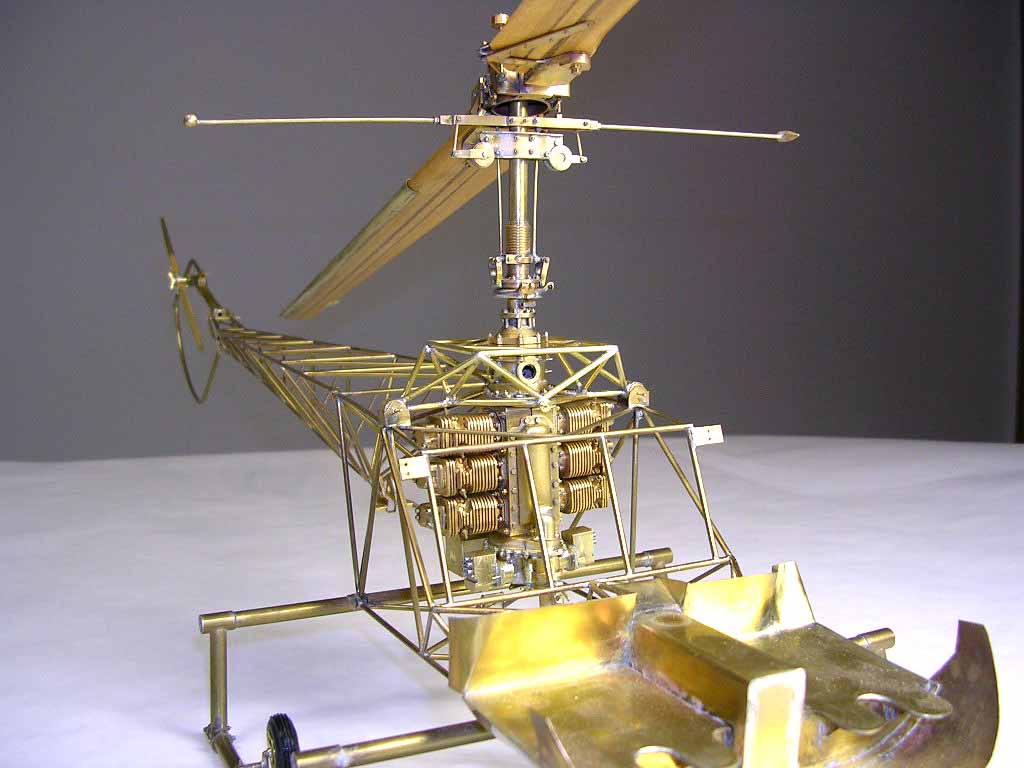

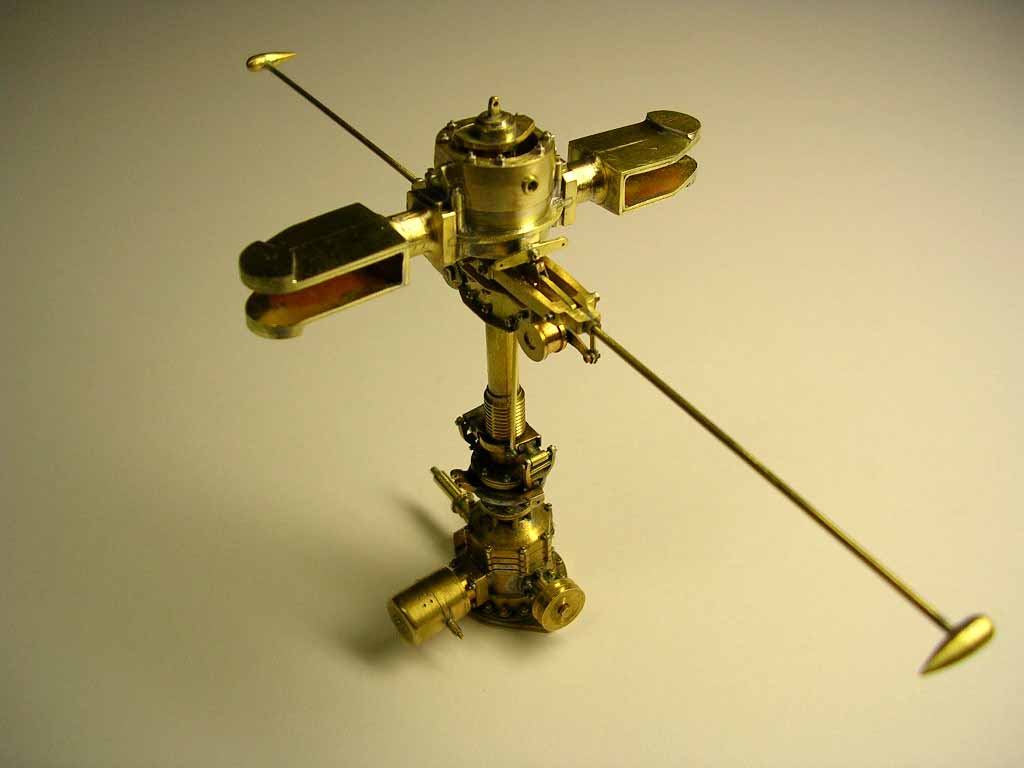

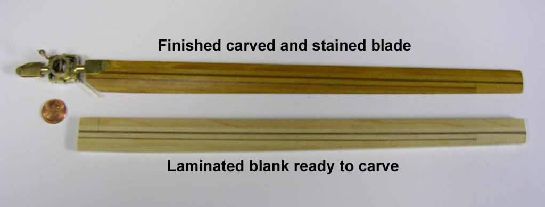

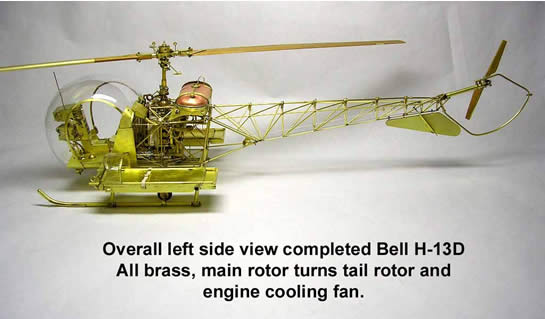

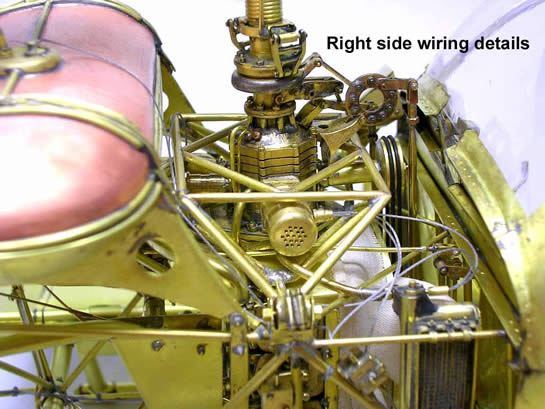

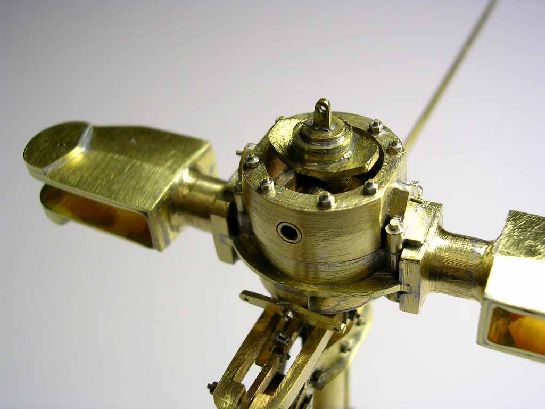

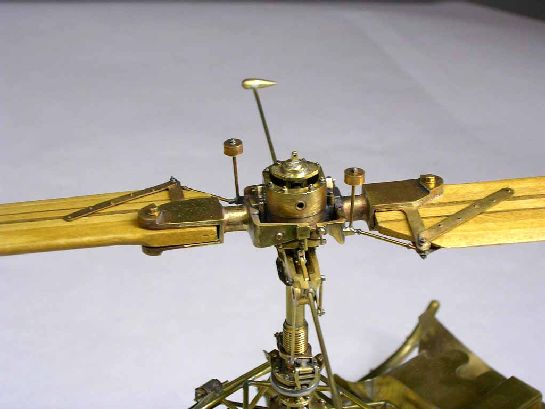

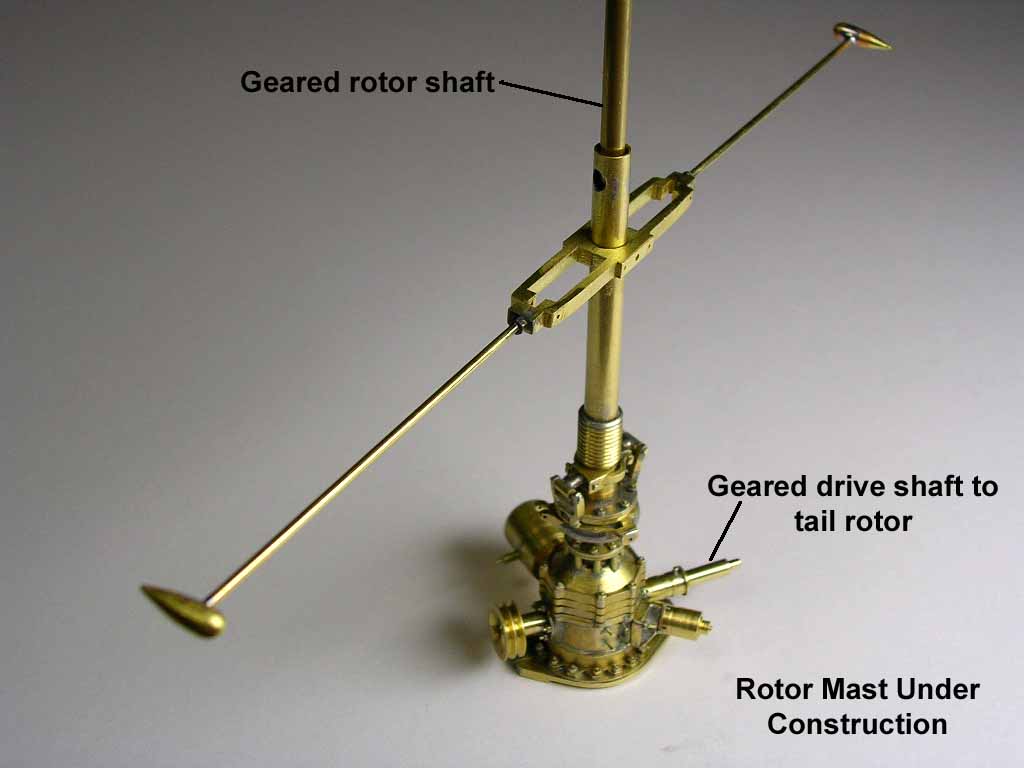

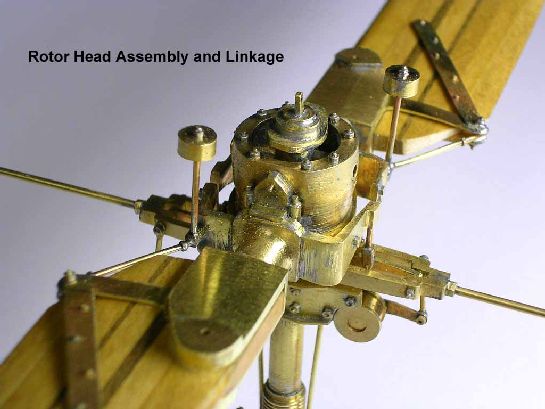

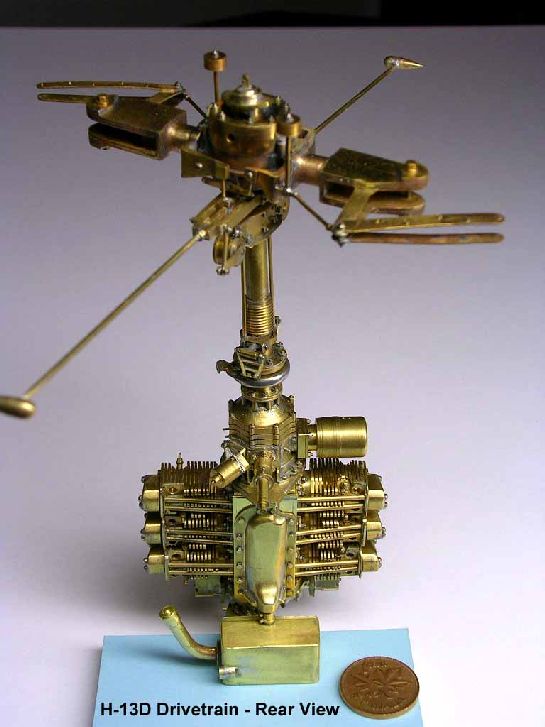

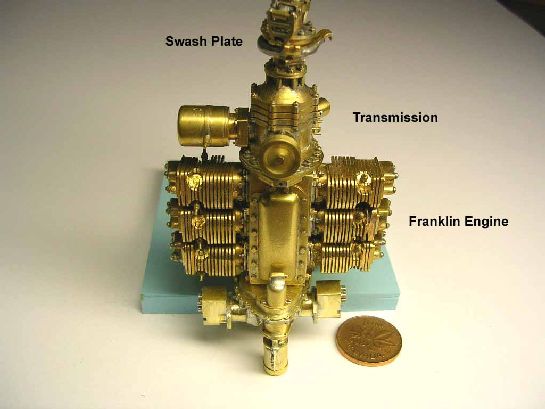

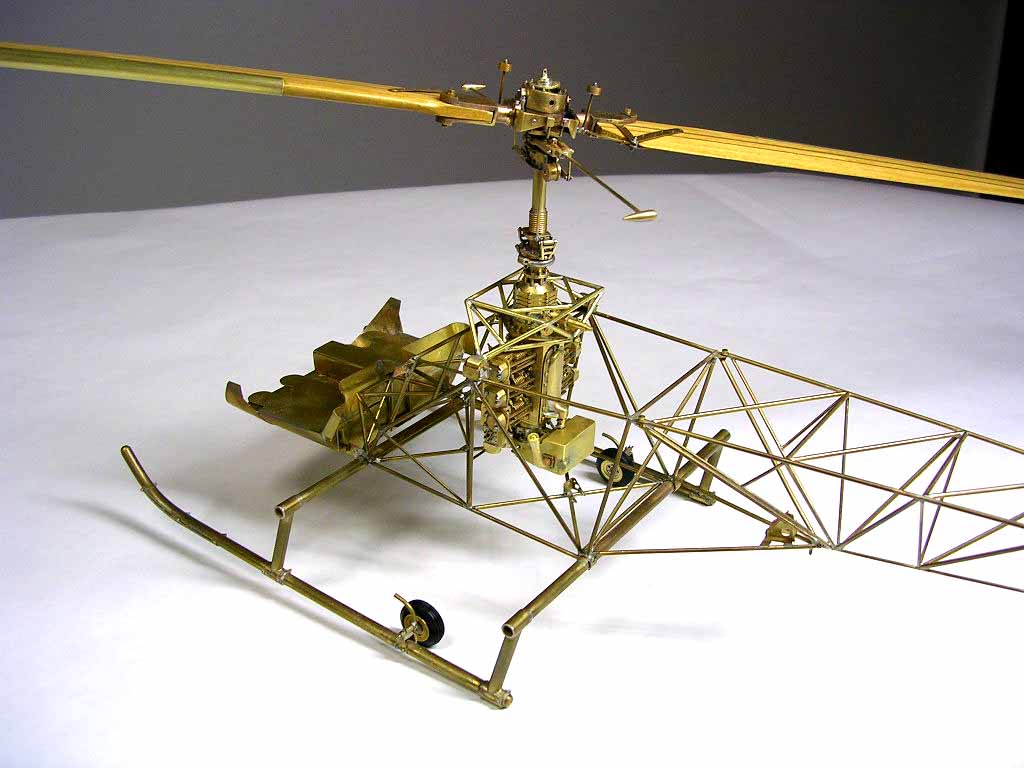

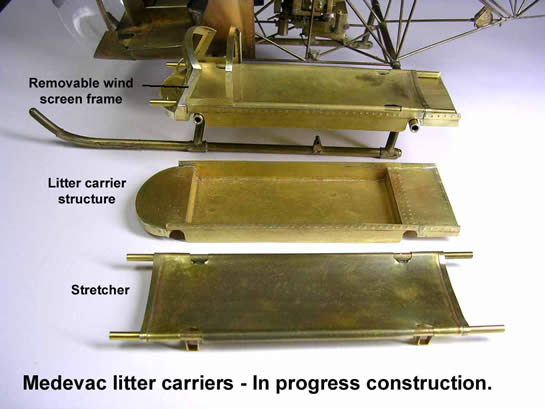

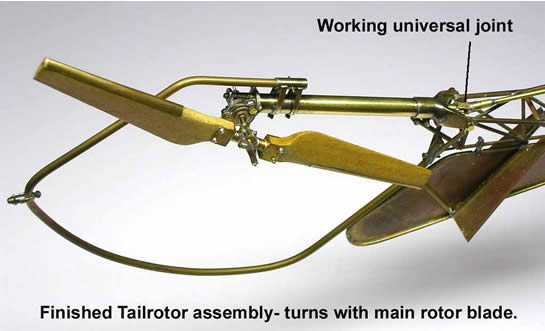

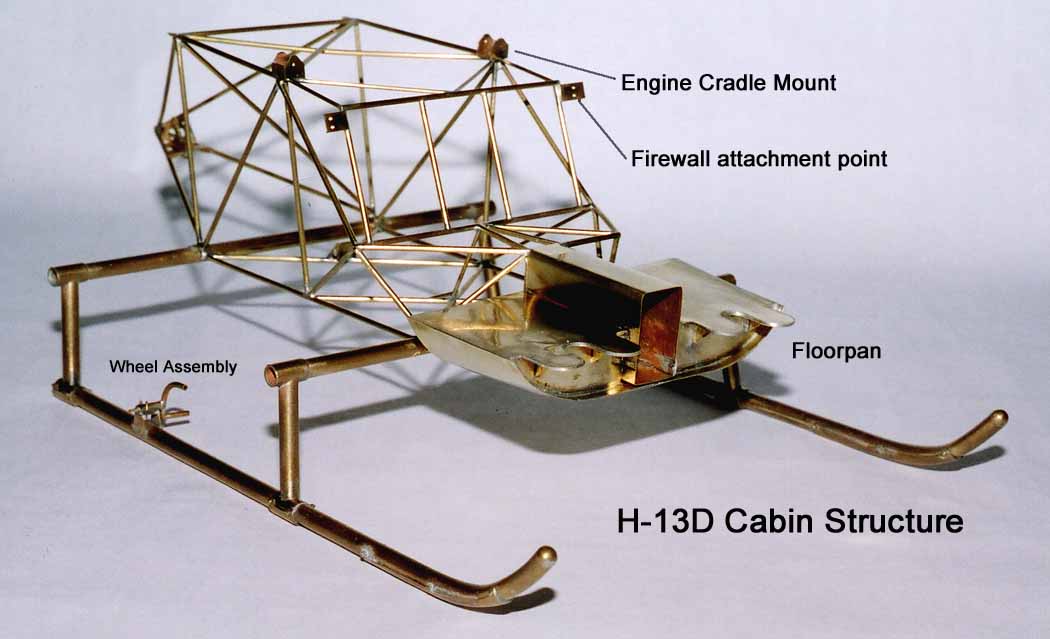

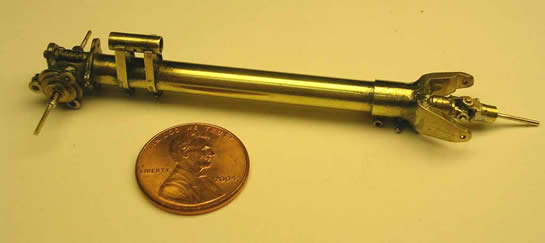

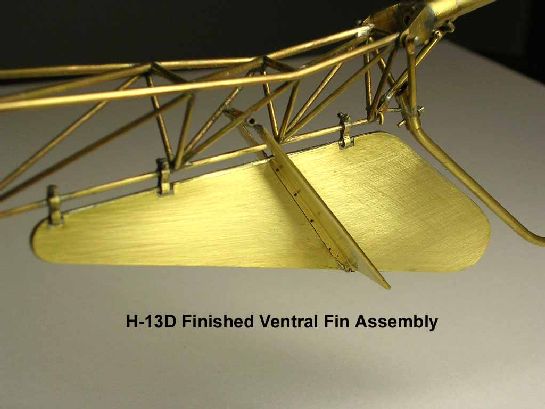

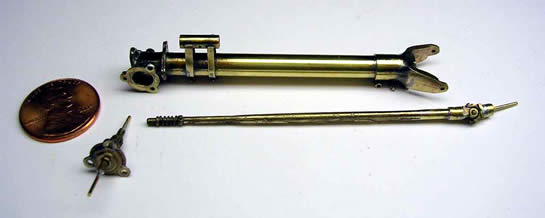

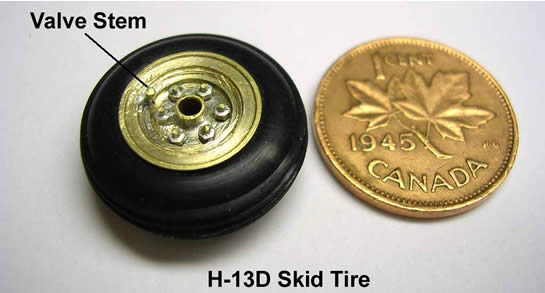

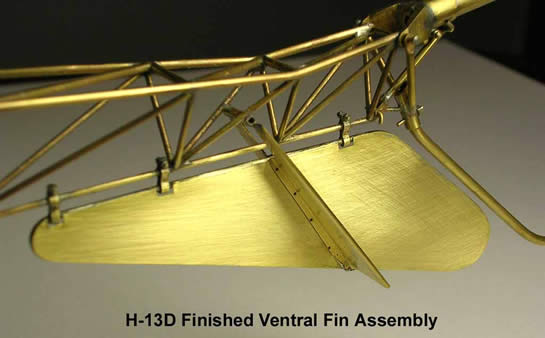

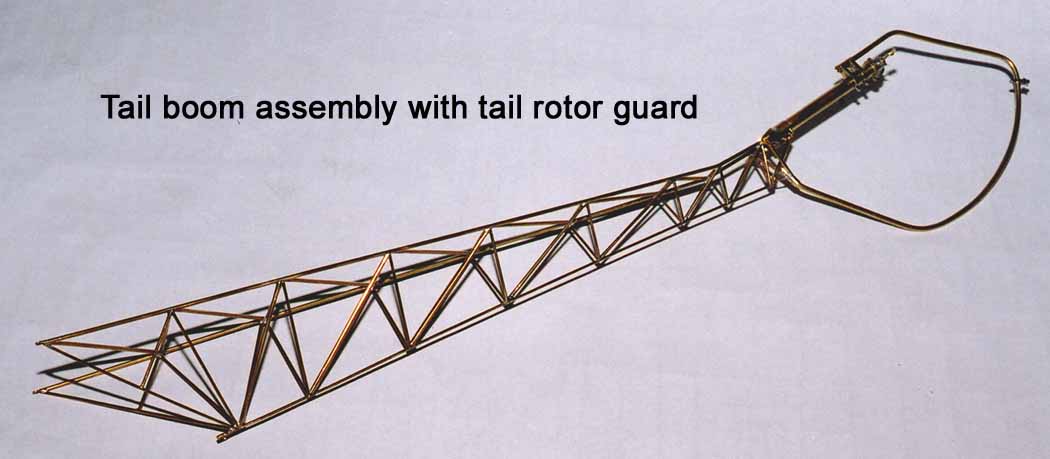

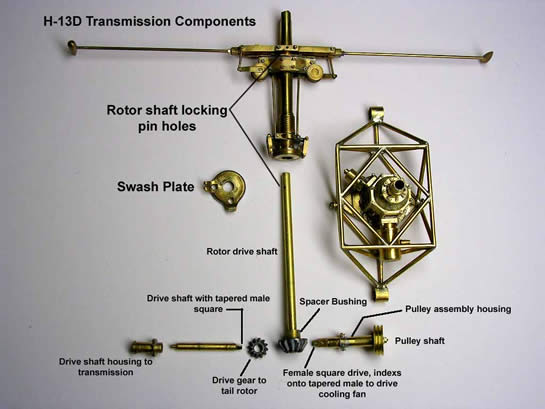

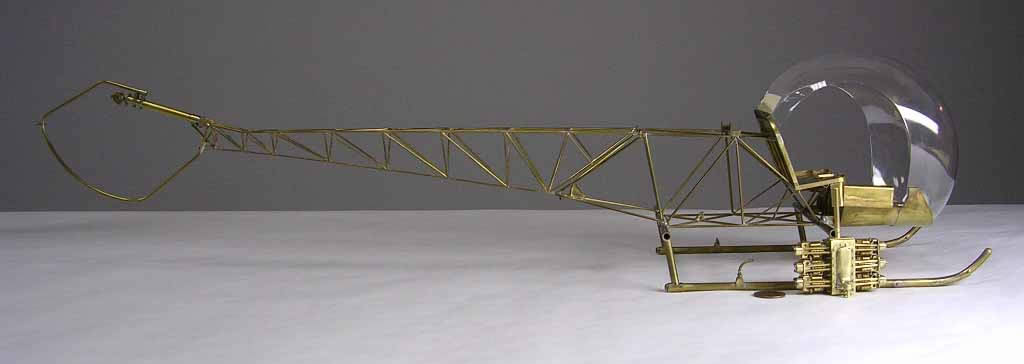

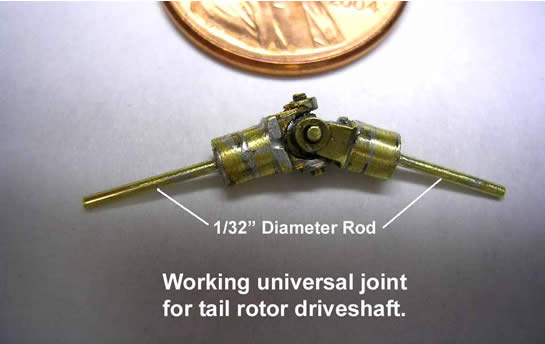

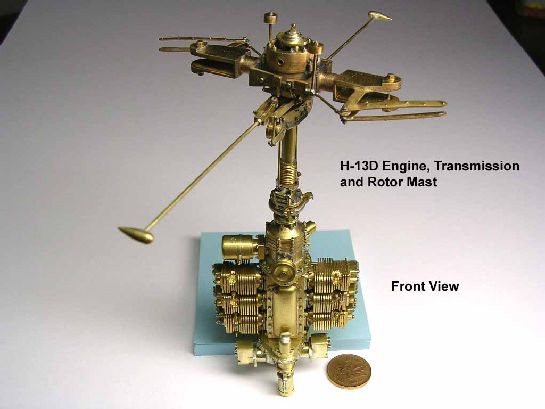

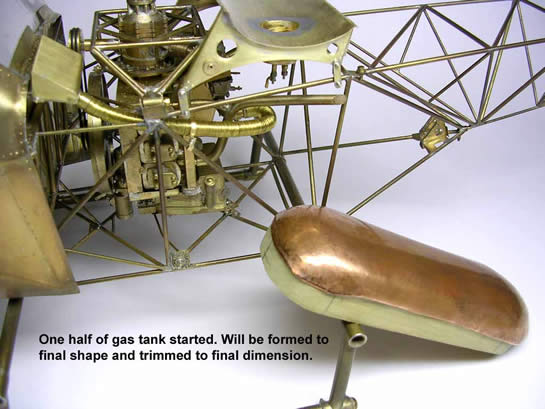

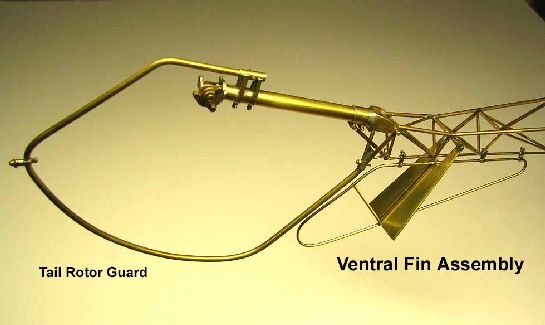

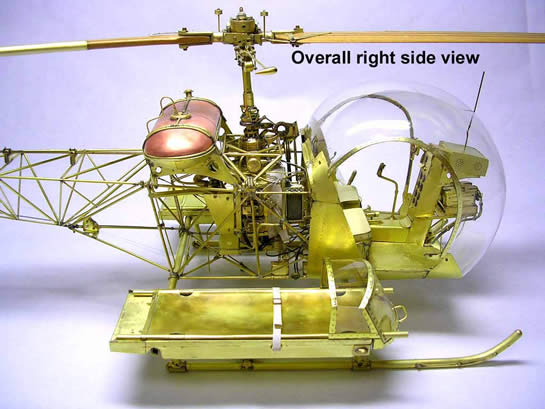

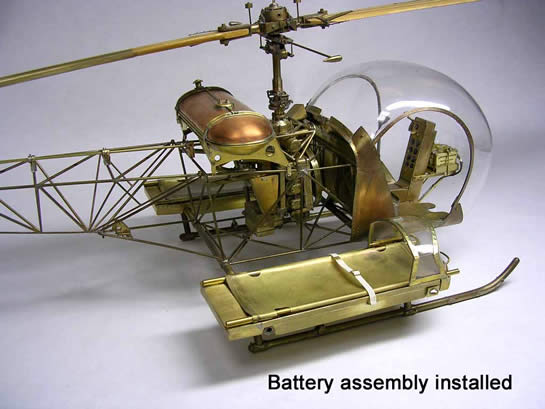

Here are some photos of my "In Progress" build of a 1/15th scale Bell H-13D M.A.S.H. Korean War medical evacuation helicopter. All brass construction, laminated wood rotor blades as per original, thermo formed PET bubble. The transmission is geared so that when main rotor is turned the tail rotor will turn with it.

Click for larger photo

Click for larger photo

Click for larger photo

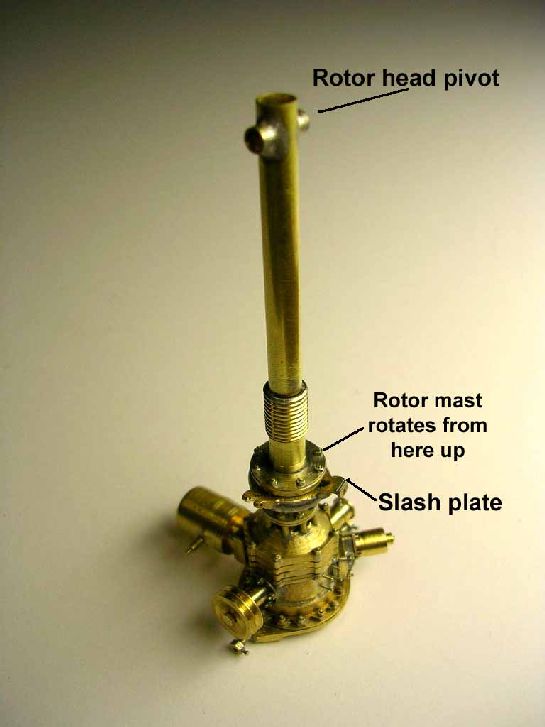

View a 14 second Quick Time clip of the rotorhead working.

Click for larger photo

Click for larger photo

Click for larger photo

Click for larger photo

Part Two

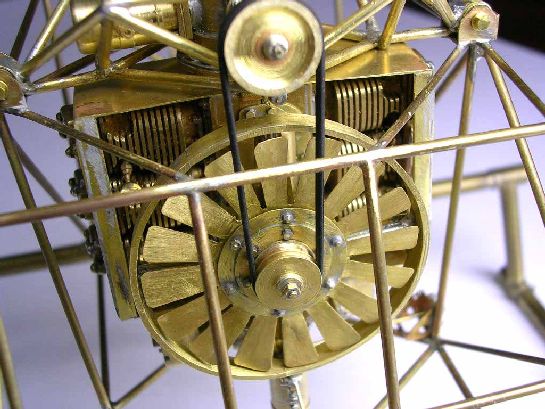

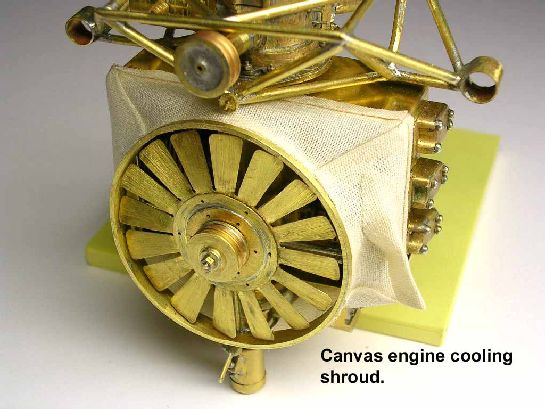

View a QuickTime clip of the cooling fan operating with the rotor blades.

Click for larger photo

Part Three

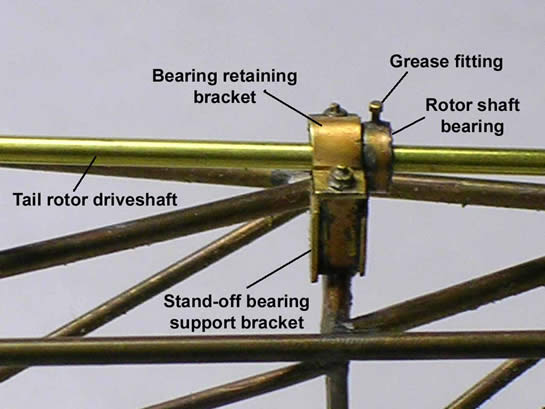

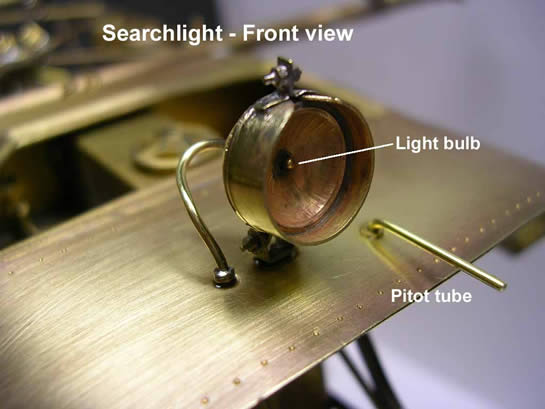

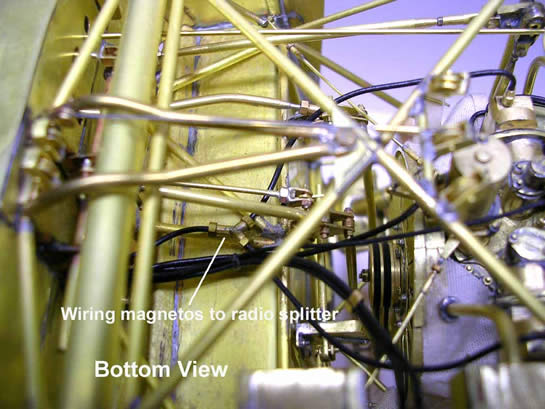

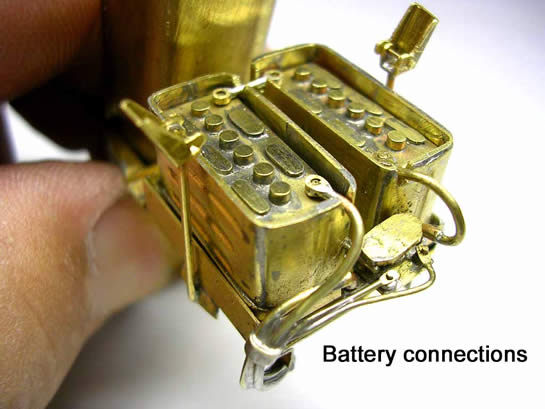

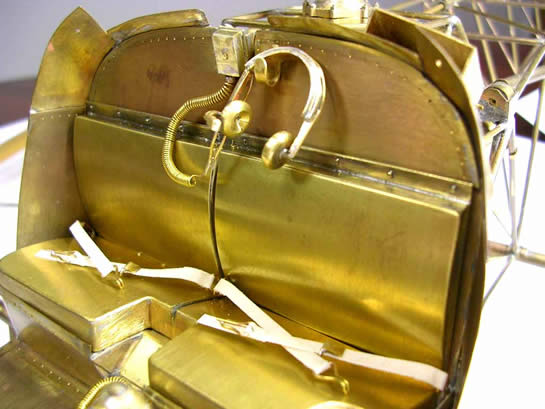

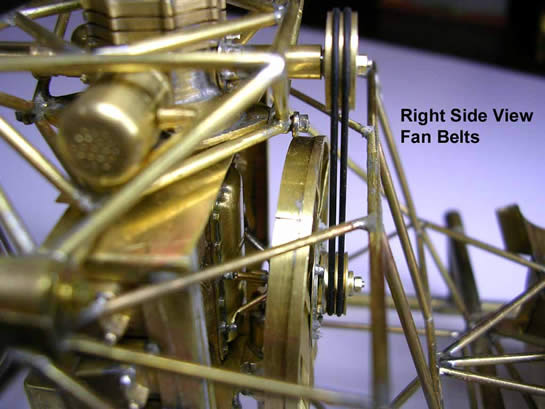

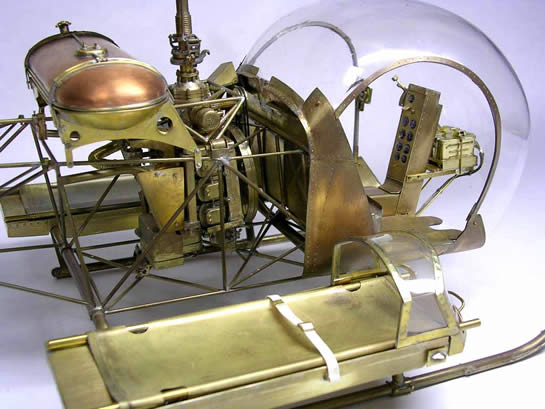

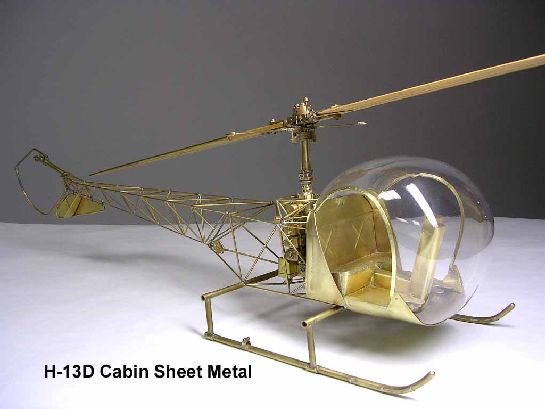

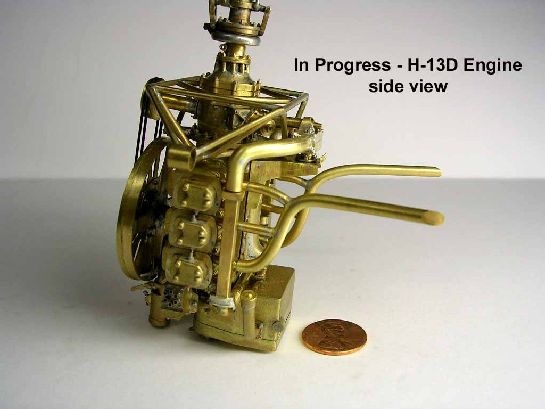

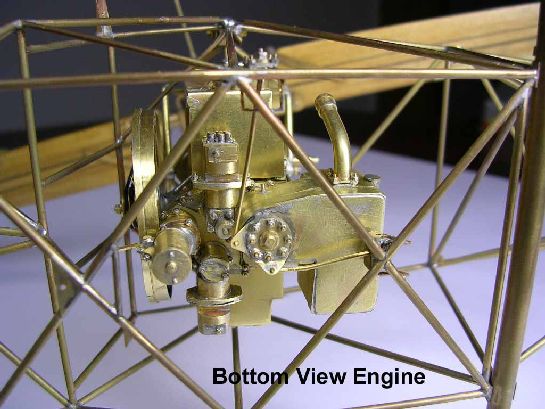

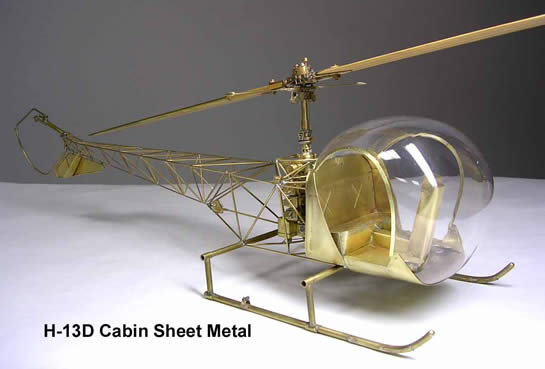

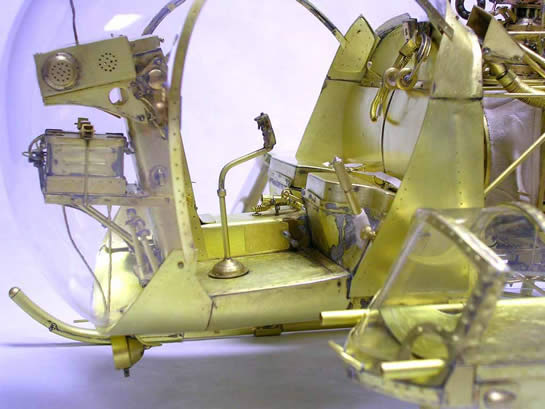

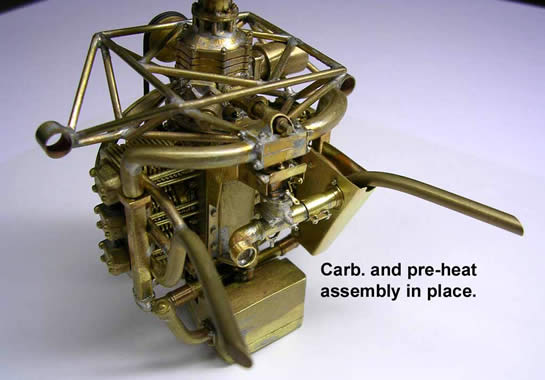

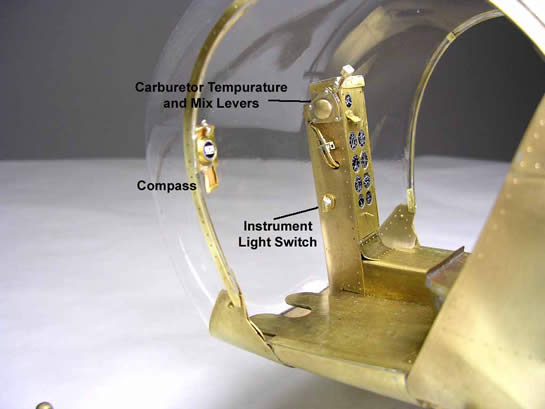

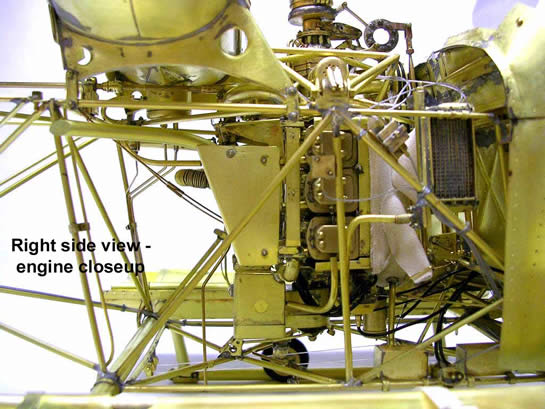

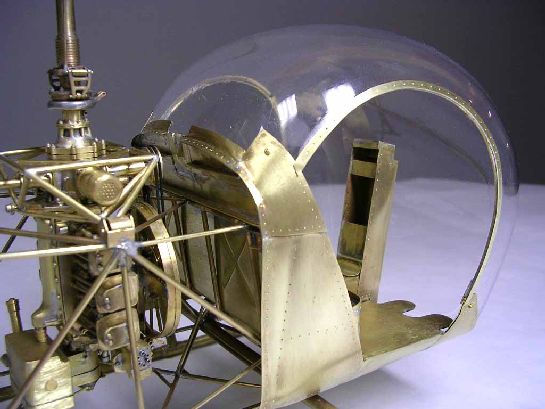

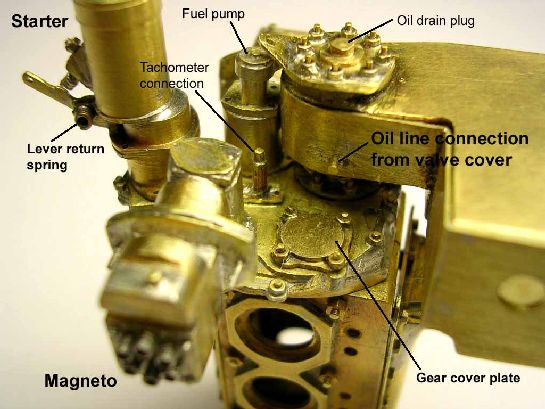

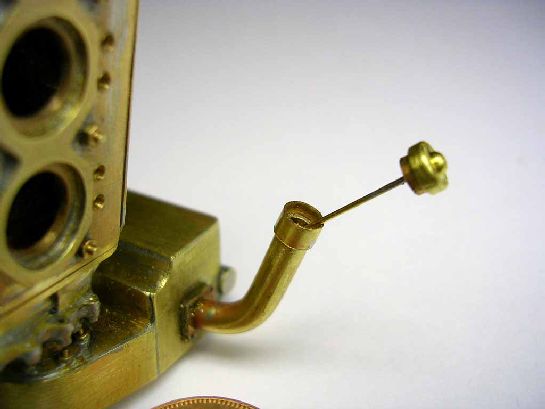

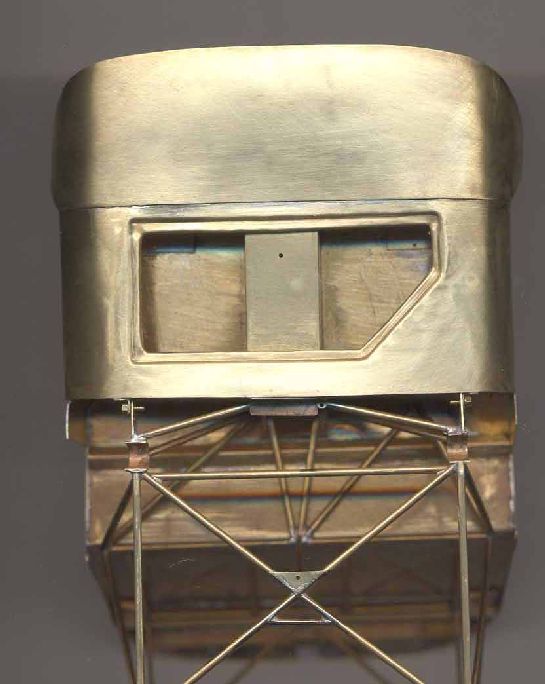

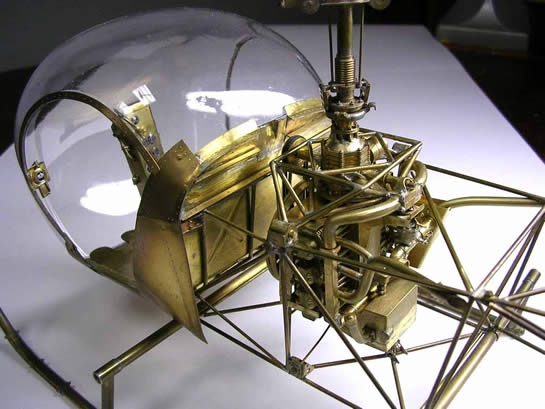

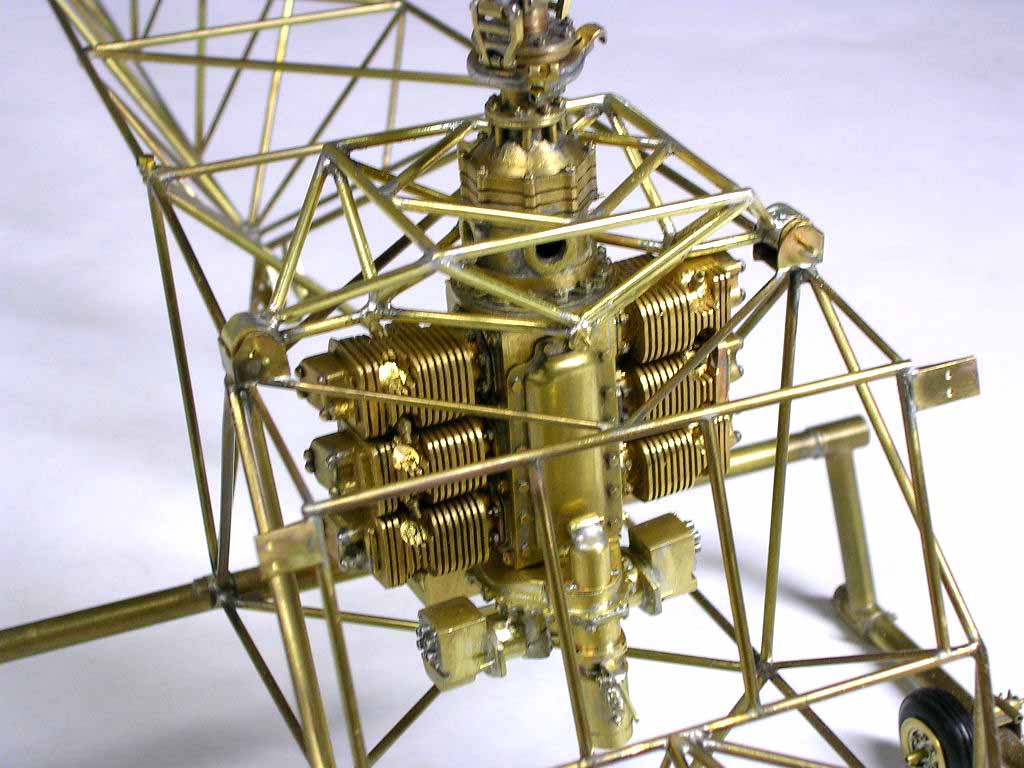

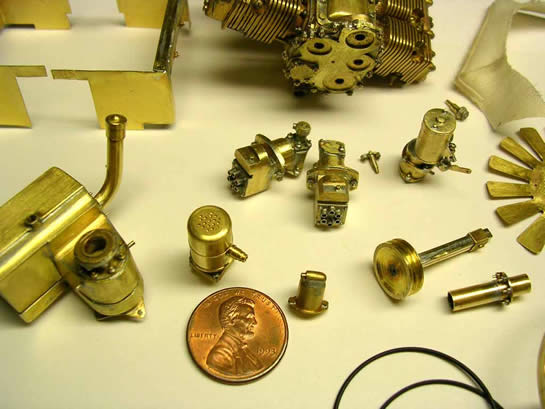

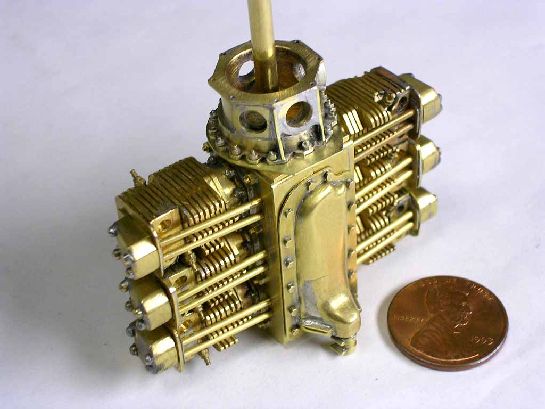

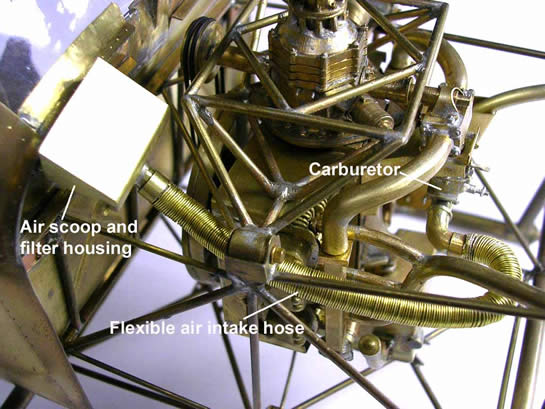

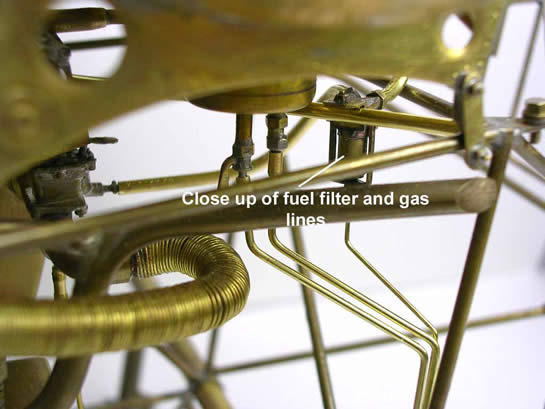

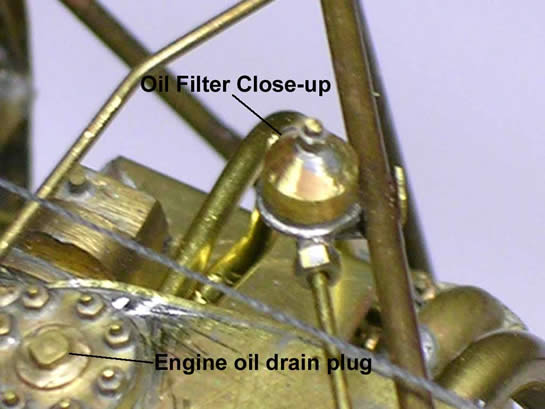

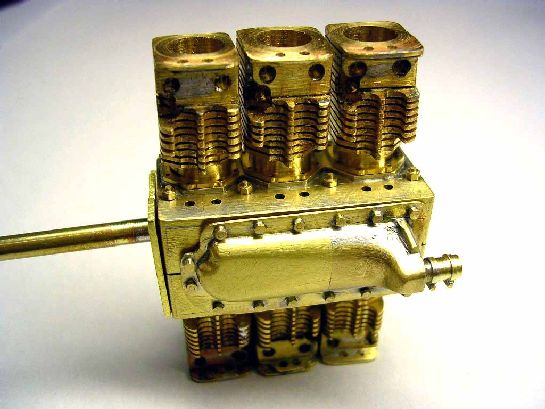

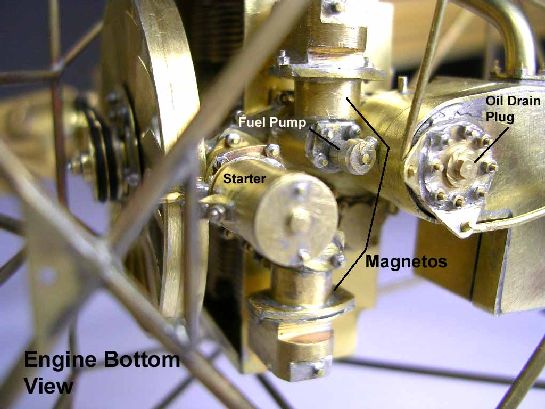

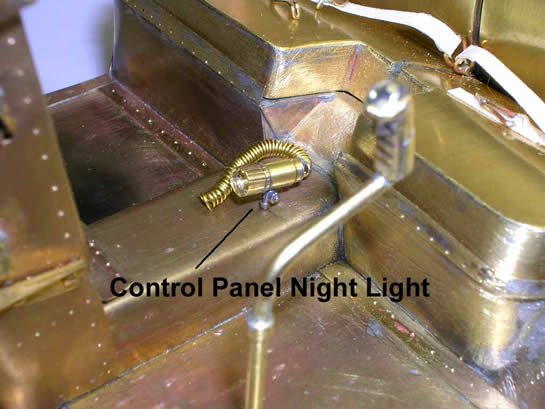

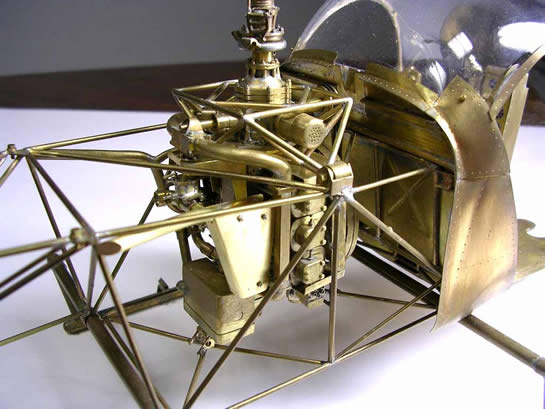

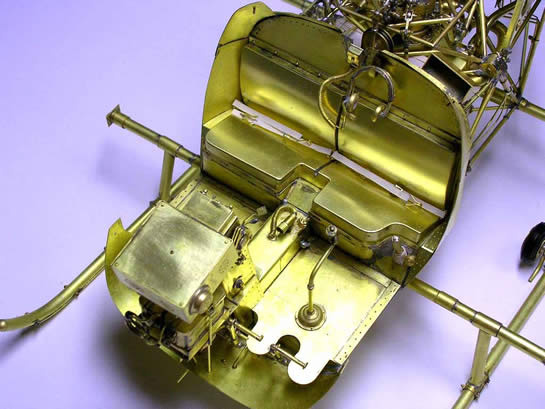

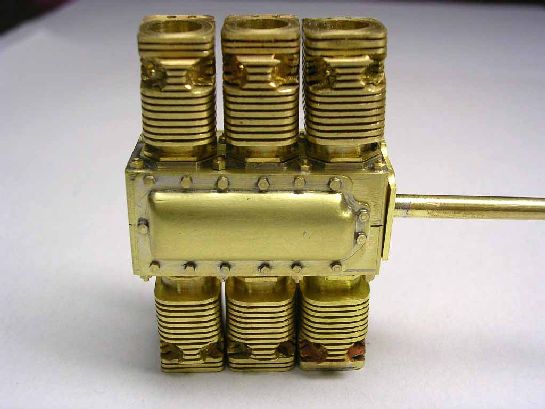

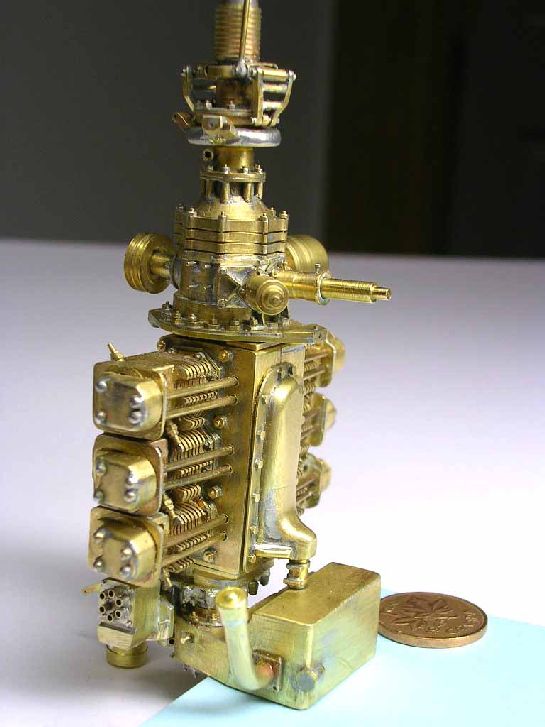

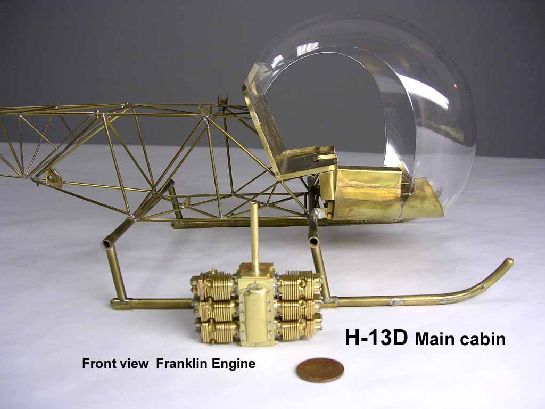

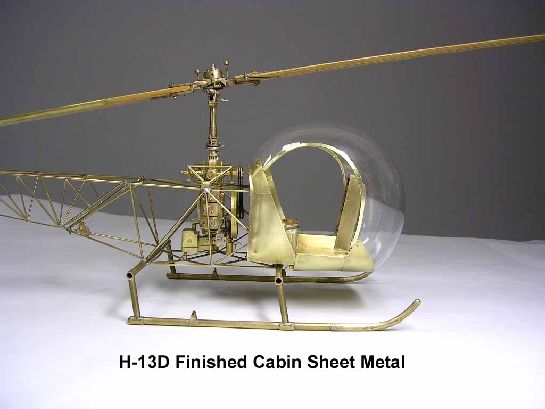

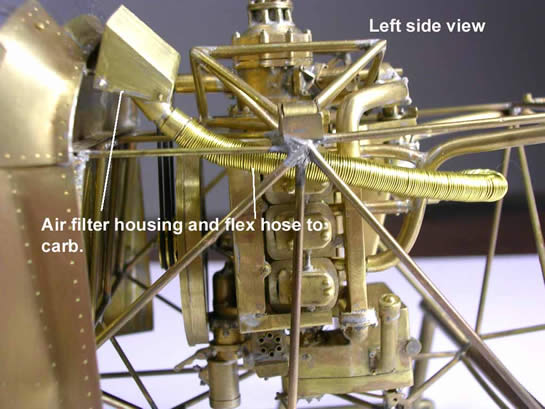

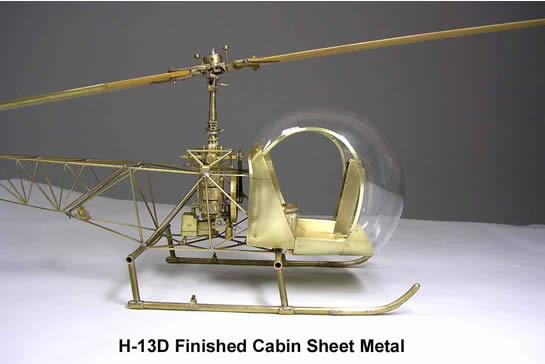

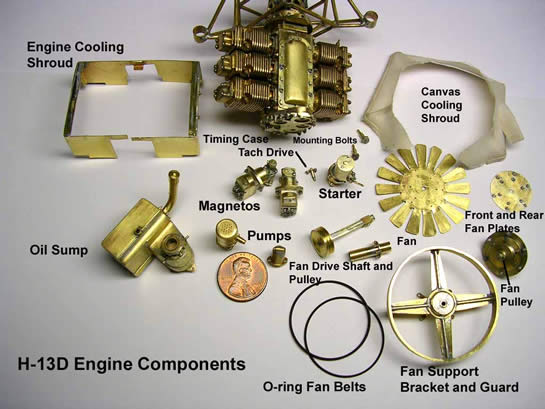

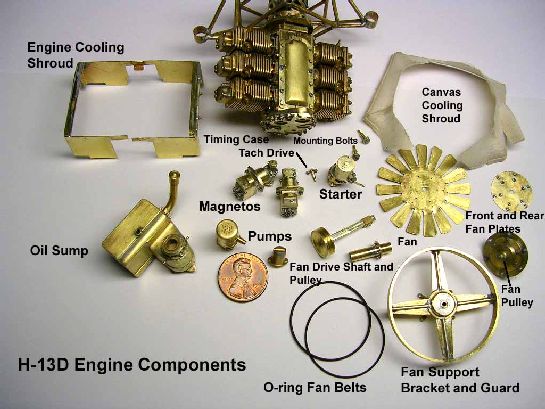

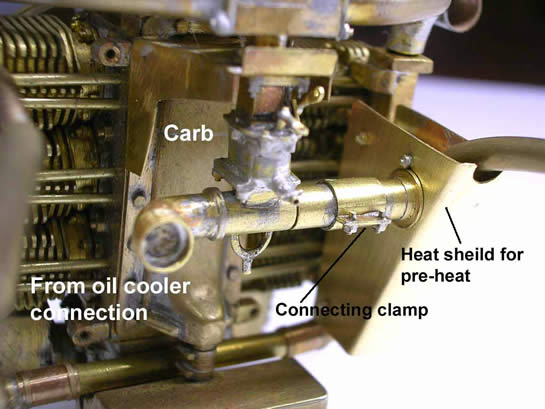

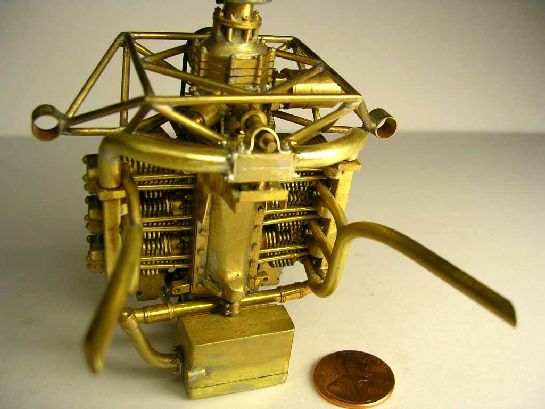

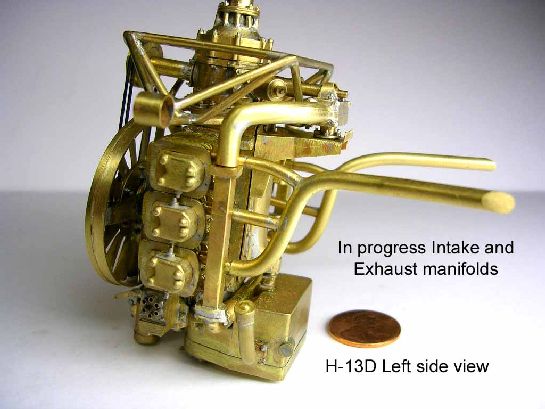

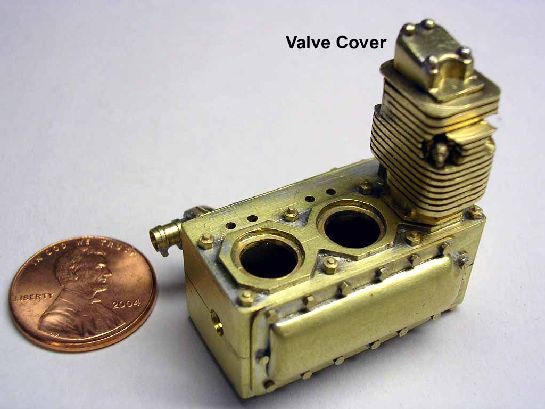

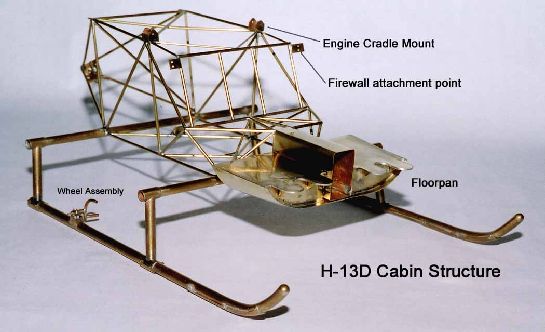

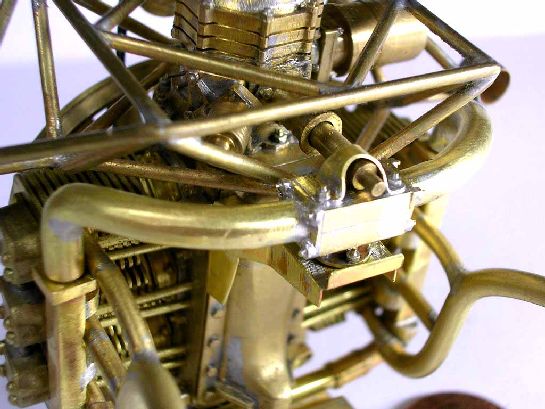

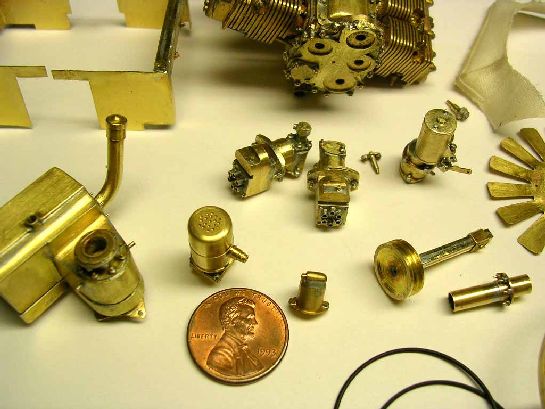

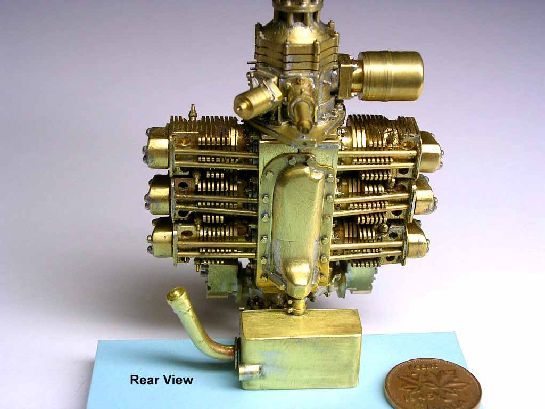

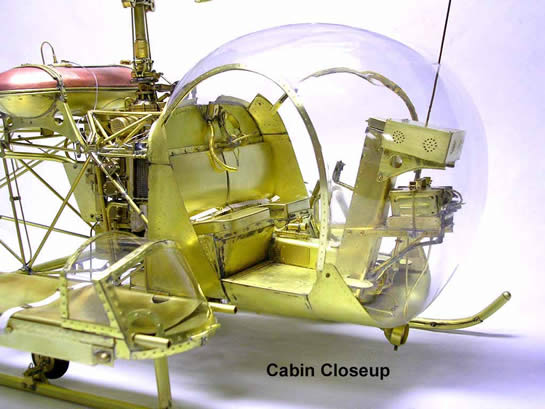

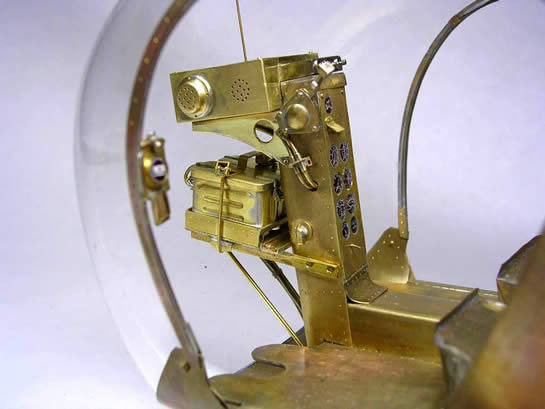

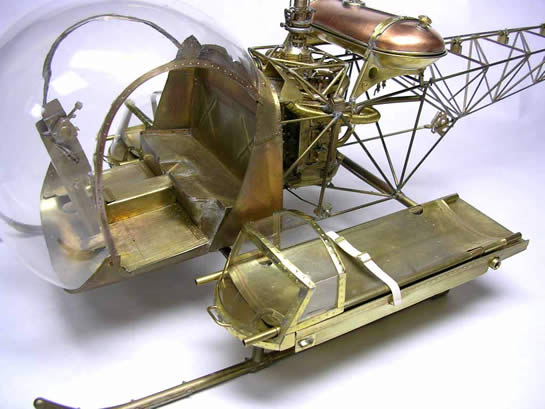

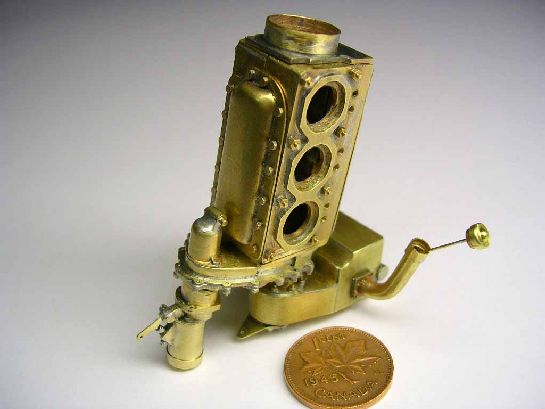

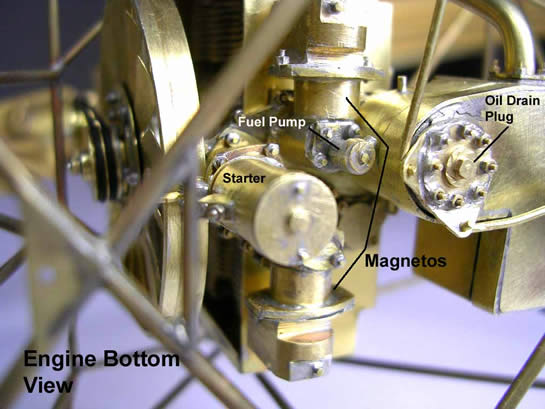

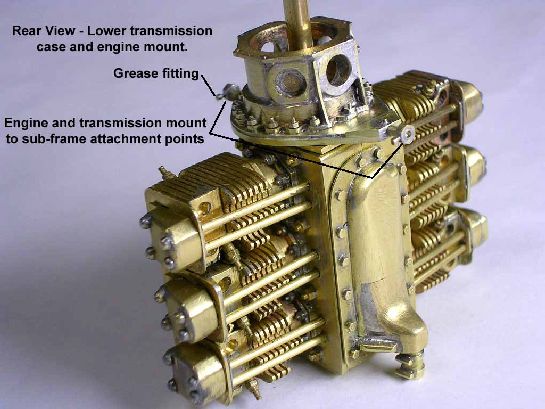

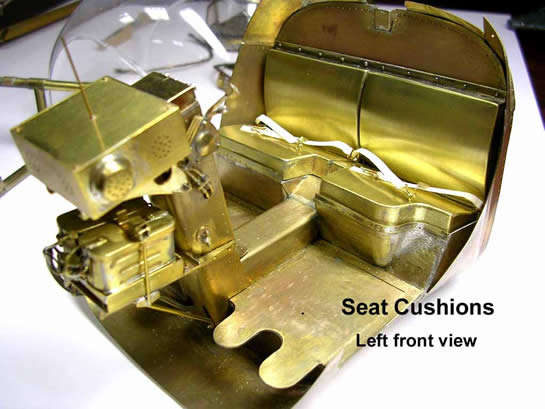

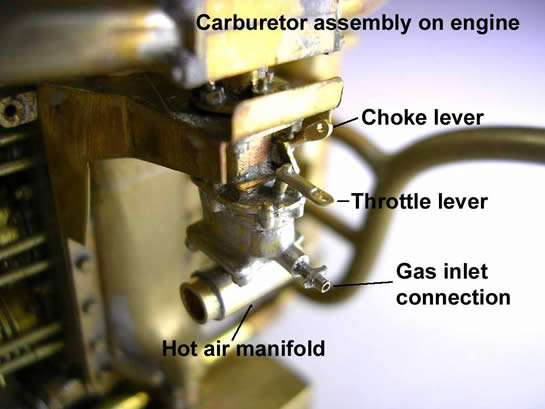

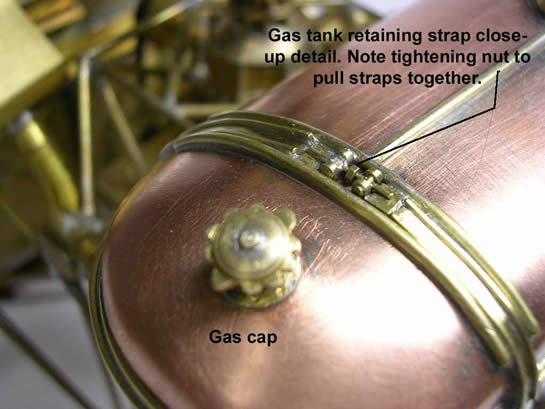

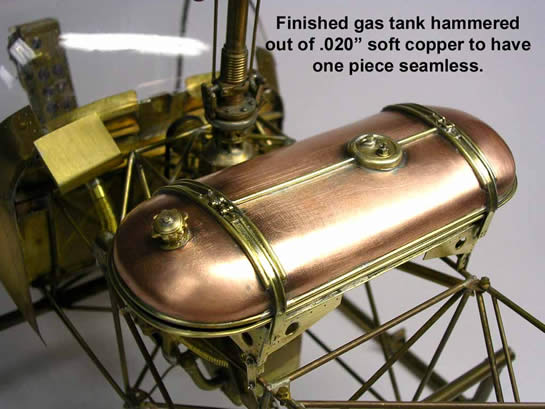

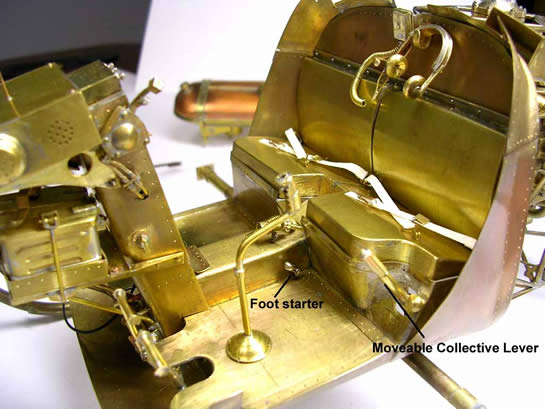

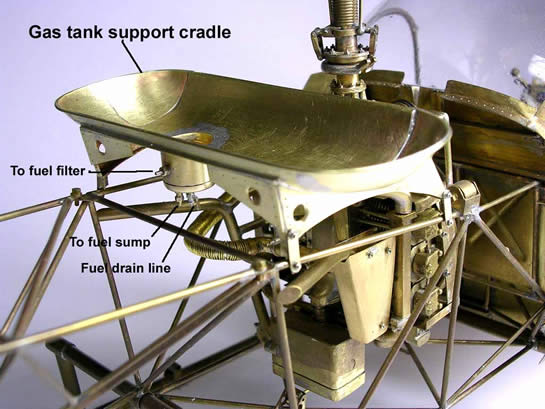

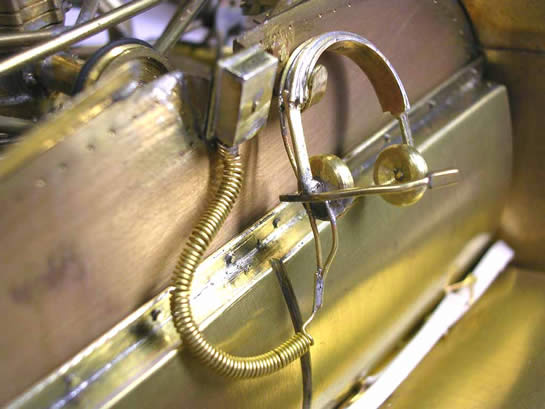

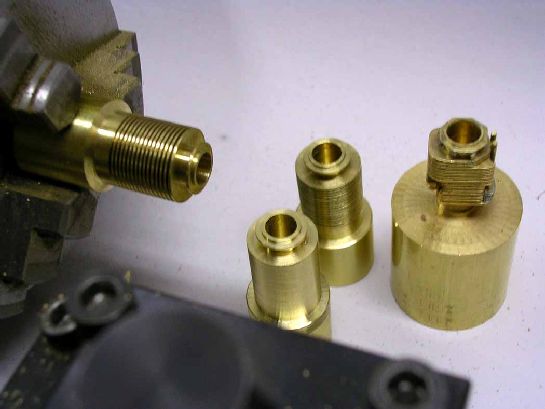

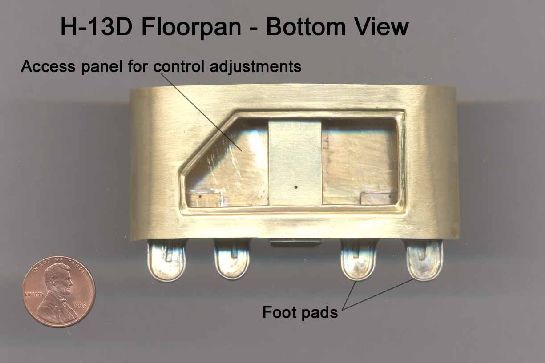

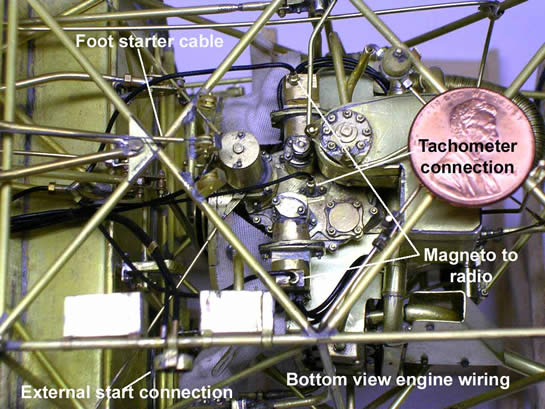

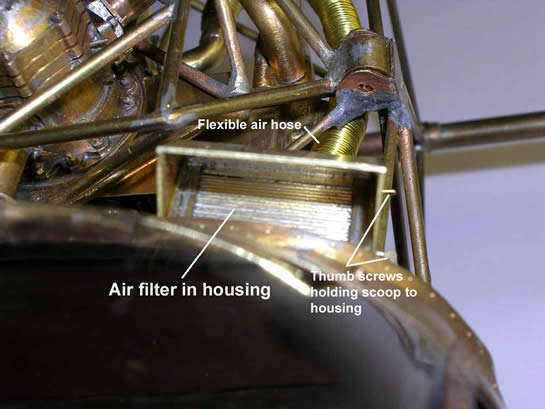

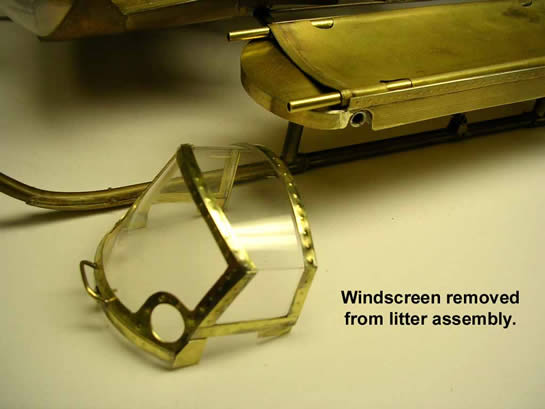

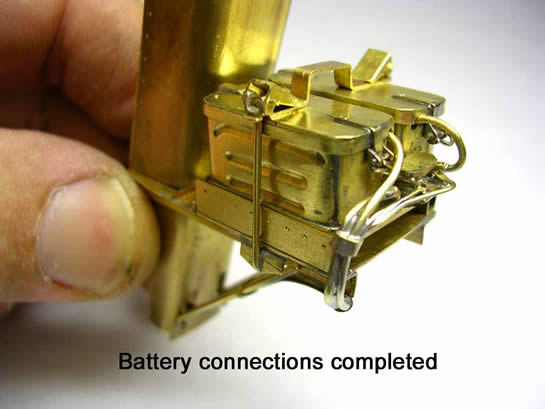

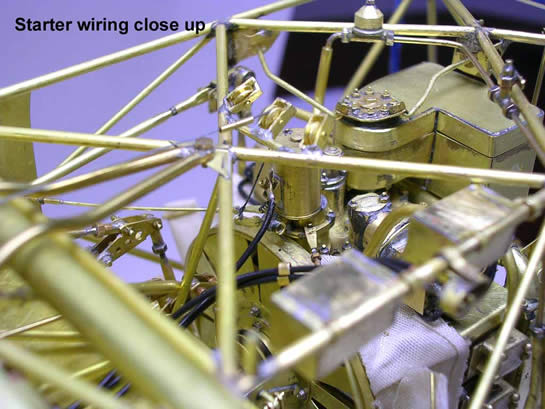

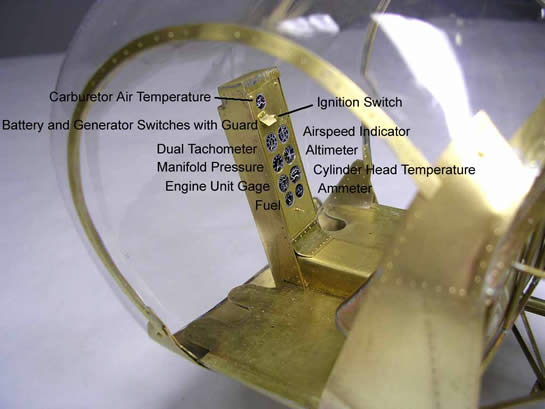

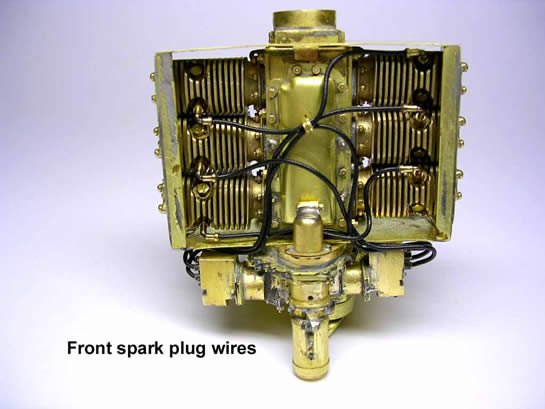

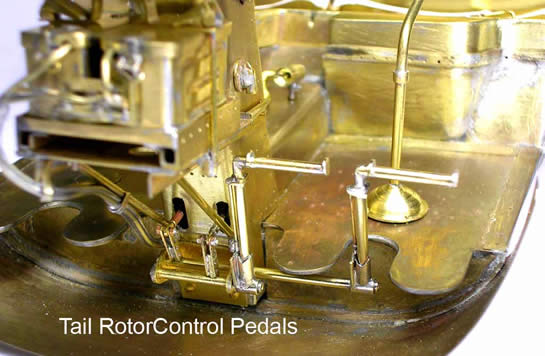

The cabin sheet metal is .010" brass sheet annealed and formed to required shapes. Also included are engine component close-ups. Again all brass parts soldered together. The fan belts are .030" x 1.112" o-rings ordered from Parker. Here are some pictures of "in progress" intake and exhaust manifolds. Getting all the holes in the cylinders to line up when forming the tubes was a challenge.
